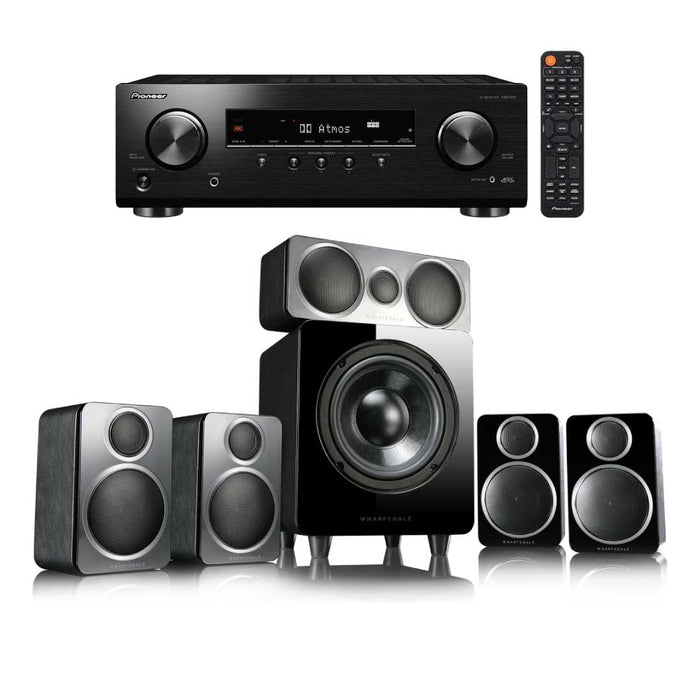

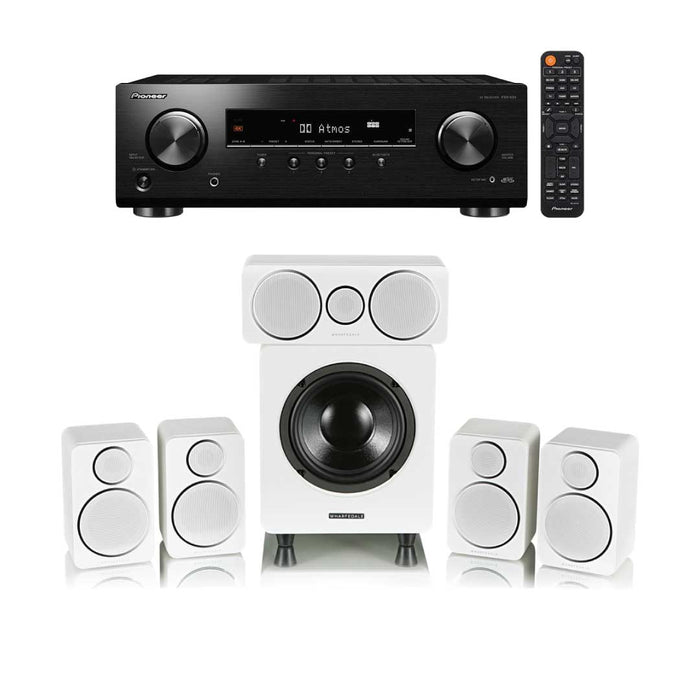

Consisting of four satellite speakers for the front and rear, plus a compact centre speaker and an active subwoofer, the DX-2 replaces the similarly diminutive DX-1 series of speaker packages. These were universally praised for their excellent ‘sound-per-pound’ performance, earning five-star reviews in What Hi-Fi? and Home Cinema Choice magazines, scoring 9/10 on the Trusted Reviews website, and winning ‘Best Compact Loudspeaker System’ in last year’s AVTech Media Awards.
The DX-2 incorporates all the key ingredients that made the DX-1 HCP and DX-1SE packages so successful, re-engineered with an improved cabinet design and a smart, contemporary new look. The drive units have been fine-tuned and the active subwoofer upgraded with a more powerful and sophisticated integral amplifier, resulting in greater scale, punch and refinement.
Ideal for mounting on a wall or an AV stand or shelf, the small DX-2 Satellite has a 19mm silk dome tweeter and 75mm mid/bass driver with a woven polypropylene cone. The enclosure is an infinite baffle closed-box design, which means the speaker can be placed in close proximity to a wall without adversely affecting their performance.
The DX-2 Centre incorporates the same silk dome tweeter flanked by two 75mm mid/bass drivers in a similarly compact cabinet. The design includes an aperiodic bass loading system consisting of a vent that is filled with resistive porous foam.
The matching WH-D8 active subwoofer features a 20cm long-throw bass driver powered by a 70w amplifier for fast, deep and well-defined sound. The quality of the subwoofer’s design ensures it integrates superbly with the other speakers in the package, without any hint of bass bloating or overhang. It also has an ‘auto-power’ facility, automatically switching in or out of standby when a signal is sensed.
The DX-2 5.1 speaker package delivers smart, space-saving contemporary style and exhilarating sound for both movies and music – fast, punchy and detailed, with a sense of scale that belies the diminutive size of the speakers.
About Pioneer VSX-534 5.2 Channel AV Receiver
Dolby Atmos®/Dolby Surround Upmixing
The VSX-534 is compatible with 3.1.2ch configuration of the latest cinema sound platform, Dolby Atmos®. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs such as PCM and DSD can be upmixed using Dolby Surround for enjoying 3D surround sound.
DTS:X®/DTS Neural:X Upmixing
DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio. Other audio codecs such as PCM and DSD can be upmixed using DTS Neural:X for enjoying 3D surround sound.
Dolby Atmos Height Virtualization*
When playing any Dolby format, engaging the Dolby Atmos Height Virtualizer enables a more immersive listening experience, creating a virtual surround and height effect from traditional speaker layouts without employing additional surround or height speakers.
* Function available with future firmware update.
With DTS Virtual:X, you can enjoy a three-dimensional immersive sound similar to DTS:X, without the need of height or rear speakers. The technology supports 2 to 7.1.4-channel input source, for delivery on 2 to 5.1-channel speaker layout. DTS Virtual:X works with all DTS codecs, including DTS:X.
Next Generation Video Standard Ready
The VSX-534 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What’s more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Colour Gamut(BT.2020), and HDCP 2.3, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.
MCACC Auto Room Tuning
Create the optimum acoustic environment with Pioneer’s MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalises response.
Zone B Output for Wireless Headphones
The VSX-534 is equipped with Zone B audio output terminals for expanding the Main Zone sound by connecting your wireless headphone dock. You can listen to the sound playing in the living room via wireless headphones.
Built-in Bluetooth® Wireless Technology
Stream songs from compatible devices with the built-in Bluetooth® Wireless Technology (ver. 4.2 + LE). The VSX-534 features A2DP/AVRCP profiles, with support for SBC/AAC codecs. By pressing the Bluetooth button on the front panel, you can directly start up the BT function, even when the unit is in standby.
Just press the Personal Preset button on the front panel for three seconds, and your current settings such as volume level and listening mode can be saved. Up to three presets can be registered and easily called up from the front panel button or the remote control.
With this unique mid-range sound control feature, you can make independent volume adjustments to the range including dialogues in films, with the up/down key on the remote control.
On-Screen Information for Audio/Video Status
The screen display now shows detailed input and output information for the playing content. So you can see whether your video is being output by Dolby Vision, or if the movie is processing Dolby Atmos or DTS:X sound.
