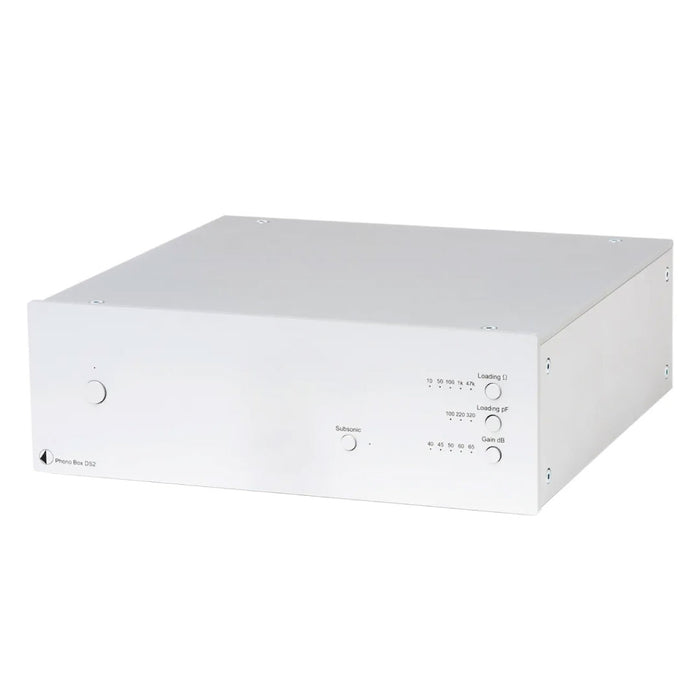

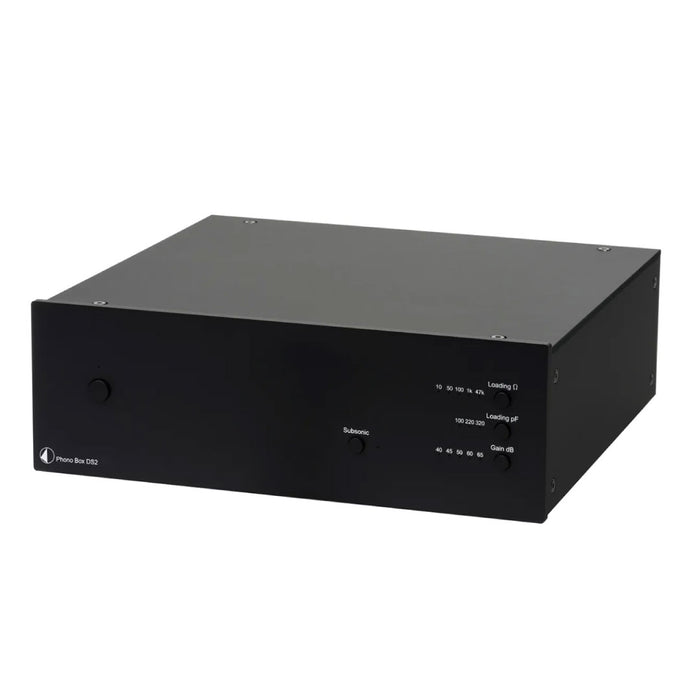

Pro-Ject Phono Box DS2

The Phono Box DS2 is a highly adjustable phono preamplifier suitable for a wide variety of MM and MC cartridges. With the ability to switch easily between various impedance, capacitance and gain settings, this is easily one of the most user friendly phono stages capable of delivering a high-end sound.

The sophisticated internal design takes inspiration from other high-end Pro-Ject Phono Box models, incorporating features like its dual-mono circuitry, precise RIAA equalisation and the use of low-noise ICs. The circuit design is also very linear, in order to the best possible sound from a minimalistic PCB. With its high value sonics and low cost price it’s set to become a real audiophile bargain!

The casing is made of a durable aluminium metal sandwich construction, which not only will effectively protect it against electromagnetic interferences and vibrations, but will also please the eye with its simple yet elegant aesthetics.

Specifications:

• Input Impedance: 10 - 47kΩ
• Capacitance: 100/120 and 320pF
• Gain: 40/45/50/60/65 dB
• Output Voltage: 500mV at 1kHz (wih 5mV input voltage at 1kHz)
• Noise Floor: -80dBV
• THD+N: < 0.02%
• THD: 0.0008%
• RIAA Accuracy: Within 0.5dB/20Hz - 20kHz

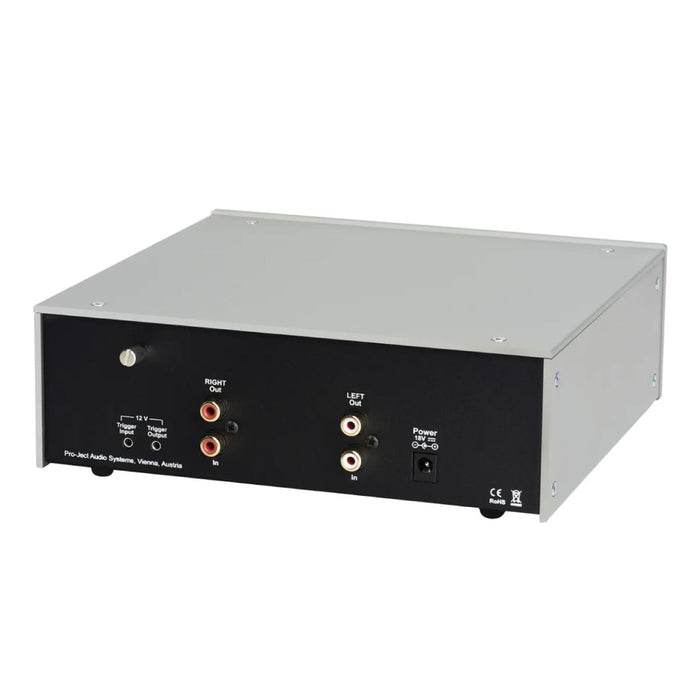

• In/Out Connectors: 1 pair RCA Connectors
• Power Consumption: 100mA DC, <1 watt standby
• Power Supply: 18V / 500mA DC; 220-240V, 50Hz
• Dimensions: 206 x 71 x 194 mm (without wings) / 240 x 72 x 194 mm (with wings)
• Weight: 1770g (without PSU)
