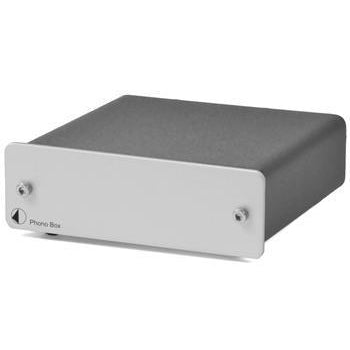

Pro-Ject Phono Box

Pro-Ject Phono Box

by Pro-Ject
€0.00 - €0.00
€0.00
€116.10
€116.10 - €116.10
€116.10

Availability: 4 in stock
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Color: Black

The Pro-Ject Phono Box is an ideal affordable solution for connecting a turntable up to your existing system, and it is also capable of working with both Moving Magnet and Moving Coil cartridges.

Key Features:

  • Metal case shields the electronics from vibrational and electromagnetic interference
  • Optimal channel separation through dual-mono circuitry
  • Special low-noise ICs used
  • Gold plated RCA connection sockets
  • Outboard power supply included
  • Amplification and RIAA equalisation for MM and MC cartridges

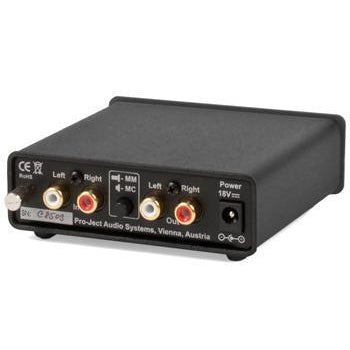

  • Phono MM/MC selection switch located at the rear of the unit
  • Small size allows installation close to record player

Today, many amplifiers do not have a specific phono cartridge inputs. The Pro-Ject Phono Box is an ideal affordable solution for connecting a turntable up to your existing system, and it is also capable of working with both Moving Magnet and Moving Coil cartridges. The output of Phono Box can easily be connected with a line-input on your amplifier.

Input Impedance:

 MM - 47kΩ / 120pF
MC - 100Ω / 120pF
Gain:

 MM - 40dB
MC - 60dB
Output Voltage Typically:

 MM - 300mV @ 1kHz - 3mV
MC - 0.3mV
Maximum Output: 9.5V (1kHz)
Noise Floor:

 MM - 86dB (94dB - A weighted)
MC - 68dB (75dB - A weighted)
THD:

 MM - 0.01%
MC - 0.05%
RIAA Equalisation Curve
Accuracy:		 20Hz - 20kHz / max. 0.5dB
Input: 1 Pair RCA Phono Sockets
Line-Level Output: 1 Pair RCA Phono Sockets
Outboard Power Supply: 18V/500mA DC
Power Consumption: 18V/80mA DC
Dimensions (W x H x D):

 103 x 36 x 104mm
103 x 36 x 115mm (Incl. Sockets)
Weight: 570g (Without Power Supply)
