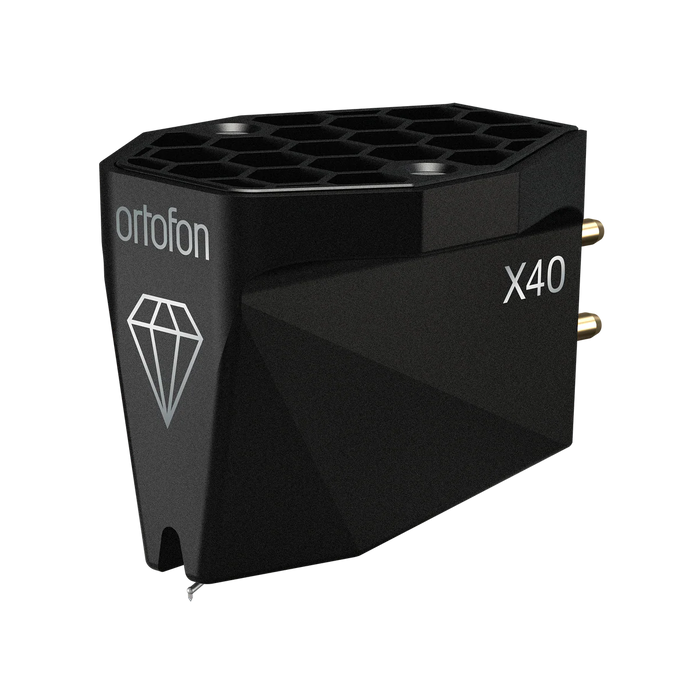

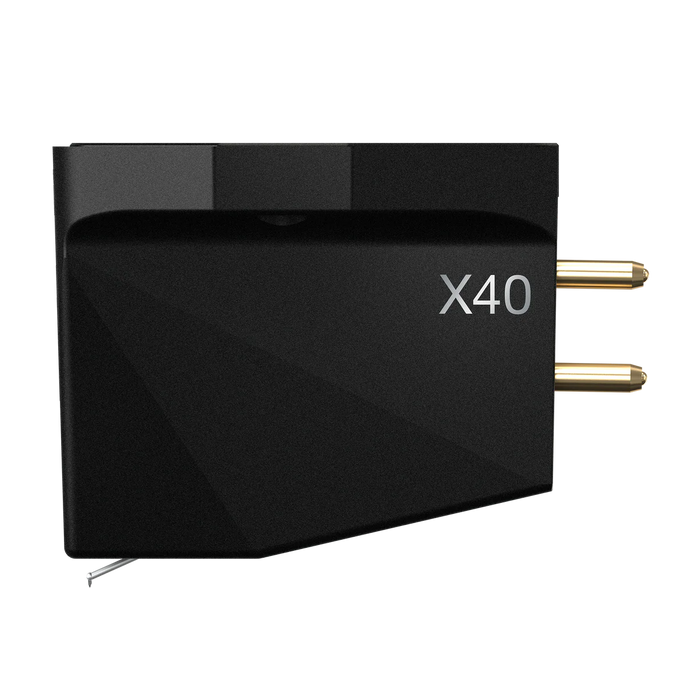

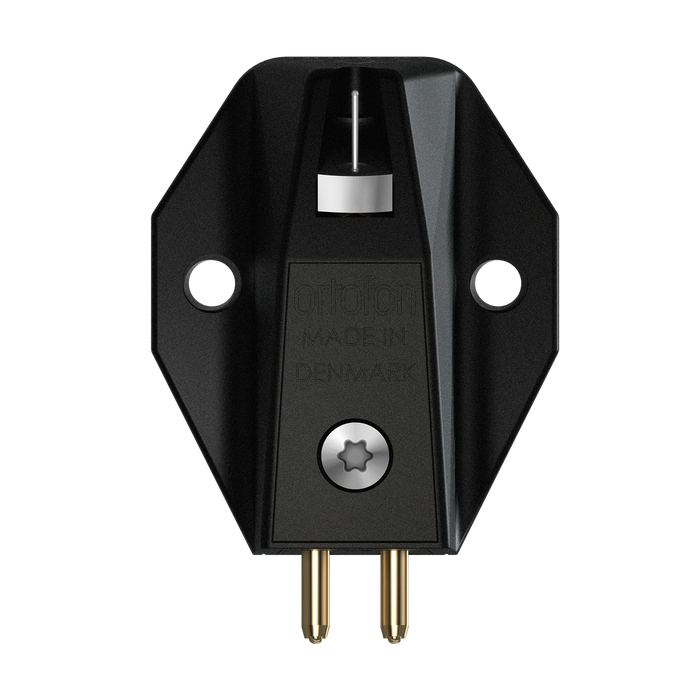

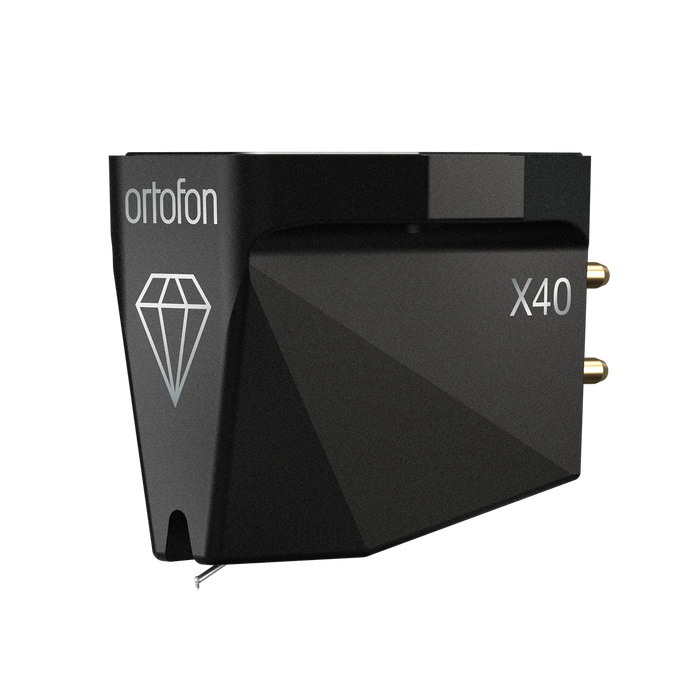

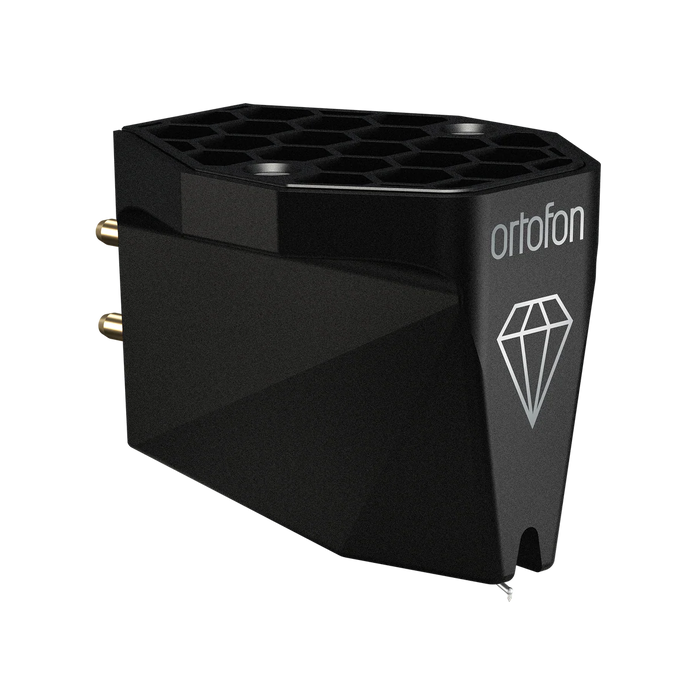

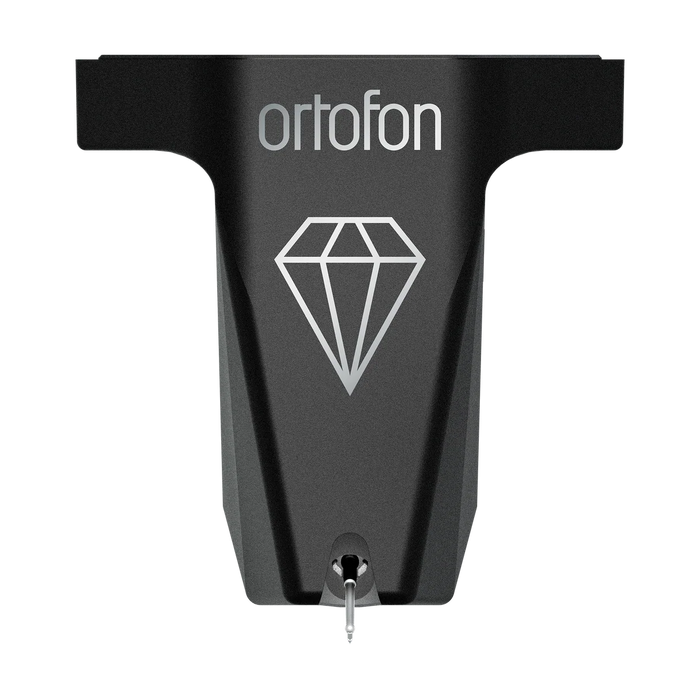

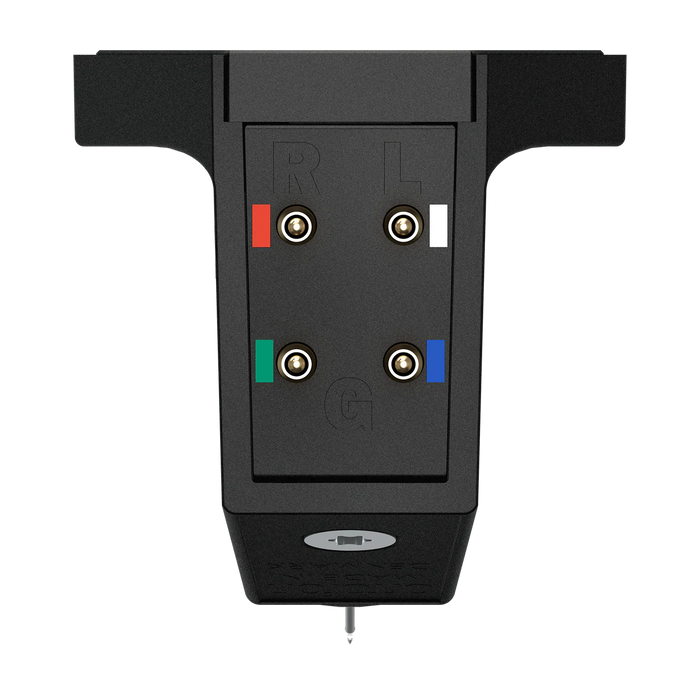

Ortofon MC X40 Moving Coil Cartridge

Ortofon MC X40 Moving Coil Cartridge

by Ortofon
€0.00 - €0.00
€0.00
€974.64
€974.64 - €974.64
€974.64

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

The Ortofon MC X40 is the flagship model in the MC X Series, engineered for audiophiles seeking uncompromising analogue performance. Combining a Nude Shibata diamond stylus with a lightweight boron cantilever, the MC X40 delivers exceptional speed, transparency, and musical precision. Designed to reveal every nuance hidden within the groove, it offers a refined, expansive presentation with effortless detail retrieval and outstanding tonal balance.

At the core of the MC X40 is Ortofon’s advanced moving coil architecture, featuring coils wound from high-purity silver wire and a newly developed magnet system designed for maximum efficiency. This premium signal path minimises interference while preserving the finest musical detail, resulting in remarkable clarity, dynamic expression, and highly accurate stereo imaging.

The Nude Shibata stylus profile allows the MC X40 to extract an extraordinary level of information from vinyl records with exceptional groove contact and reduced distortion. Mounted on a rigid boron cantilever, the stylus responds with incredible speed and control, producing a highly detailed sound with natural highs, articulate midrange, and deep, controlled bass.

Mechanical stability is equally critical to the MC X40’s performance. Ortofon employs a custom-developed damping system using proprietary rubber compounds to reduce unwanted vibration and ensure precise coil movement. The cartridge body itself is constructed using a MIM stainless-steel honeycomb core structure, providing exceptional rigidity and resonance control for cleaner, more focused sound reproduction.

The MC X40 combines cutting-edge engineering with elegant Scandinavian design. Its refined profile integrates beautifully with premium tonearms while reflecting Ortofon’s long-standing expertise in moving coil cartridge development. Honoured with StereoNet’s Product of the Year award in the phono cartridge category, the MC X40 has been praised for its smooth, open, and genuinely high-end sonic character.

Whether listening to delicate acoustic recordings, complex orchestral arrangements, or dynamic modern productions, the Ortofon MC X40 delivers a composed and deeply immersive analogue experience. It is a cartridge built for listeners who want maximum musical insight, precision, and refinement from every record in their collection.

  • Flagship moving coil phono cartridge
  • Nude Shibata diamond stylus
  • Lightweight boron cantilever
  • High-purity silver coil wire
  • Advanced magnet system with integrated rear magnet yoke
  • MIM stainless-steel honeycomb core structure
  • Custom-developed rubber damping system
  • Frequency response: 20Hz – 20kHz (+/-1 dB)
  • Output voltage: 0.4mV
  • Channel separation: 26dB
  • Recommended tracking force: 2.0g
  • Internal impedance: 6Ω
  • Dynamic compliance: 15μm/mN
  • Recommended load resistance: >50Ω
  • Cartridge weight: 8.6g
  • StereoNet Product of the Year award winner
