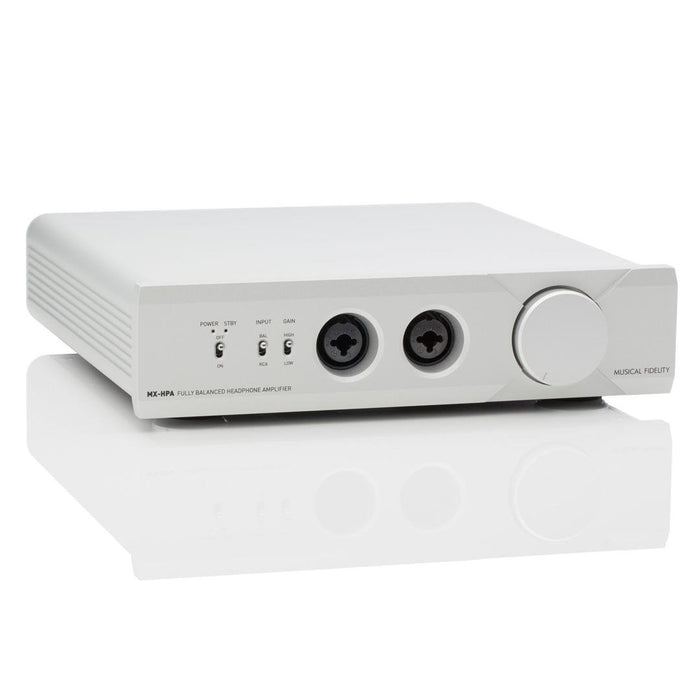

Musical Fidelity MX-HPA Headphone Amplifier
Years of experience in making high quality headphone amps have been distilled into the design of the MX-HPA. As a result, this fully-balanced headphone amp offers an awe-inspiring listening experience.
Years of experience in making high quality headphone amps have been distilled into the design of the MX-HPA. As a result, this fully-balanced headphone amp offers an awe-inspiring listening experience.
Key Features
Years of experience in making high-quality headphone amps have been distilled into the design of the MX-HPA. As a result, this fully-balanced headphone amp offers an awe-inspiring listening experience.
The MX-HPA’s technical performance is stunning. Typically, distortion from 20 Hz to 40 kHz is less than 0.005%. Signal-to-noise ratio is better than 120dB (‘A’ weighted). The frequency response is ruler flat from 10 Hz to 20 kHz (-0.1dB).
The MX-HPA is capable of a short-term peak of 10 watts (for one cycle) and has two gain positions: 18dB (8X) and 24dB (15X). Inputs are either balanced or single-ended. The MX-HPA will automatically convert single-ended inputs to balanced. The MX-HPA is genuinely fully balanced from beginning to end.
Press Reviews
"A truly natural, satisfying sound, with a deep and richly populated soundstage"
- STEVE HARRIS - HI-FI NEWS
"Well thought out device with decent dynamics"
- STEFAN SCHICKEDANZ - AUDIO
"Allows you to dive deeply into music"
- MARTIN MERTENS - EARIN
"It puts music in the first row and doesn’t hide it behind technical qualities"
- SEBASTIAN EILZER - FAIRAUDIO
Power: | 1.8 Watts per channel into 8 Ω (27dBW) |
Maximum output voltage: | 19 Volts RMS, 20Hz to 20 kHz |
Onset of clipping: | (54 Volts peak-to-peak) balanced |
THD+N: | >0.005% typical, 20Hz to 20 kHz |
Signal / noise ratio: | >120dB ‘A’-weighted |
Input impedance: | 50k Ω |
Frequency response: | +0, –0.1dB, 10Hz to 20 kHz |
Gain: | LO position (volume max) 18db (8x) |
Gain: | HI position (volume max) 24dB (15x) |
Line level inputs: | 1 pair line level XLR (balanced) connectors 1 pair line level RCA connectors |
Headphone outputs: | 1 pair 3-pin XLR/¼” stereo Jack combined sockets |
Mains voltages: | 90-250VAC 50-60Hz universal worldwide supply |
Consumption: | >0.25 Watts standby (Orange LED lit) 15 Watts maximum (Blue LED lit, full power output) |
Dimensions (W x H x D): | 220 x 53 x 240mm |
Weight: | 2.2kg |
