Mission LX Connect DAC & Headphone Amplifier

by Mission
Original price €438.05 - Original price €438.05
Original price €438.05
€438.05
€438.05 - €438.05
Current price €438.05

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

The Mission LX CONNECT DAC is a stand-alone digital-to-analogue converter, pre-amp and headphone amplifier, derived from the award-winning Mission LX CONNECT wireless speaker system.

It fuses the Mission mantra of innovative, attractive design and class-leading performance with the latest audio technology, to enhance your audio experience.

Central Console

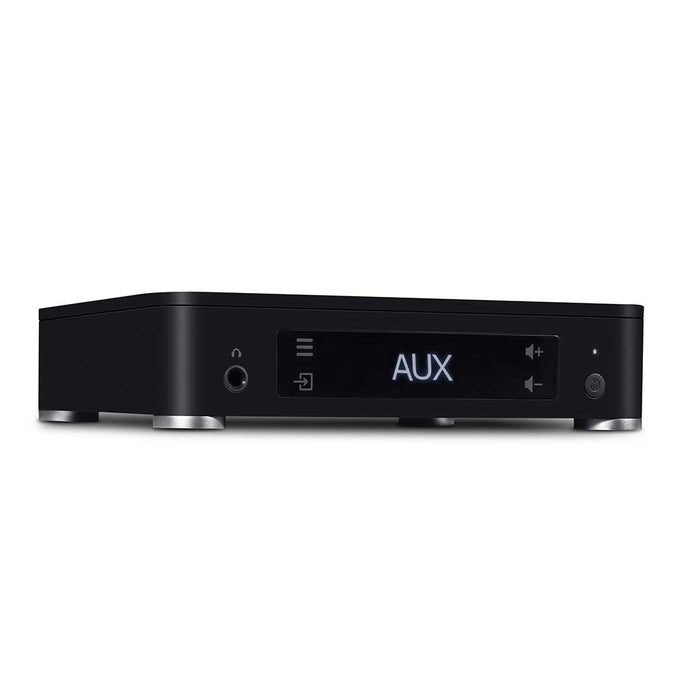

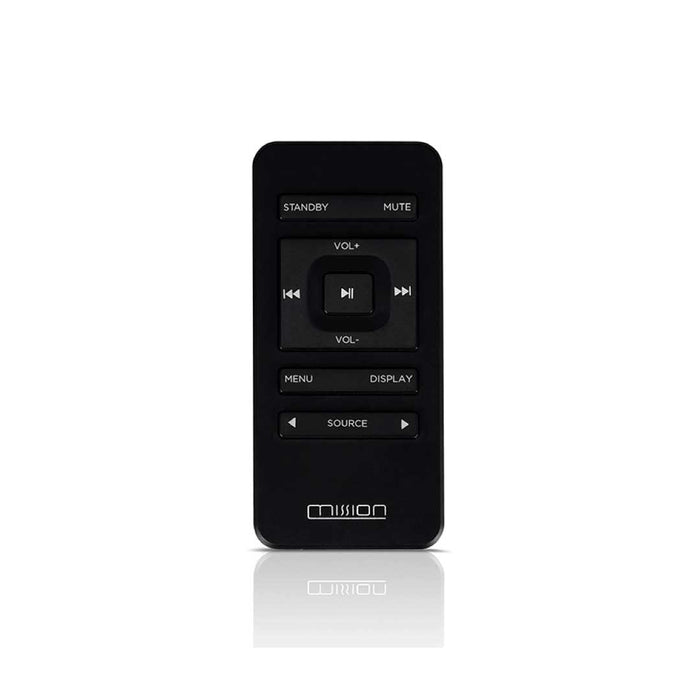

Designed to function as a central console for all your music sources, with analogue, optical and coax digital inputs, the Mission LX CONNECT DAC also features a dedicated HDMI ARC connection to bring high fidelity, true wireless performance for TV, movies and games. It is even equipped with a Bluetooth aptX receiver for wireless streaming of hi-resolution audio from tablets and smartphones. The LX CONNECT DAC is controlled gracefully via the touch-sensitive display, or for even more convenience you can use the included remote. The versatile connectivity options and compact form factor means it can be used as the all-encompassing DAC and pre-amp interface for any amplifier, active speakers, computer audio or head-fi system.

Audiolab Expertise

Mission has utilised the audio electronics expertise of sister-company Audiolab, maker of many award-winning DAC and amplifier components, to create the LX CONNECT DAC interface.

It incorporates a high-performance DAC stage based around the ES9018K2M DAC chip, from the Sabre32 Reference family. For ultra-low noise performance and high dynamic range, that ES9018K2M chip is accompanied by proprietary circuitry to make the most of ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator.

Headphone Amplifier

The LX CONNECT DAC supports hi-res PCM files up to 32-bit/384kHz over USB and 24-bit/192kHz via the coaxial and optical inputs; DSD (up to DSD256) is also supported over USB. An RCA-stereo output is provided with fixed and variable output options, fed by a high-quality analogue stage.

A high-quality headphone amp is also included, again derived from Audiolab – with its current-feedback circuitry, excellent gain bandwidth and high slew rate, a dynamic and detailed performance with all manner of headphones is assured.

Roon Tested

The Roon platform has become the standard-bearer for high-quality digital music management and streaming. The LX CONNECT DAC is officially ‘Roon Tested’, meaning it has been put through its paces rigorously by Roon and certified for use in a Roon audio environment – for example, when connected to a PC or Mac running Roon software.

As a standalone desktop DAC / headphone amp / pre-amp solution, there aren’t many single units that offer a performance and specification to match LX CONNECT DAC, in this price segment.

Specifications:

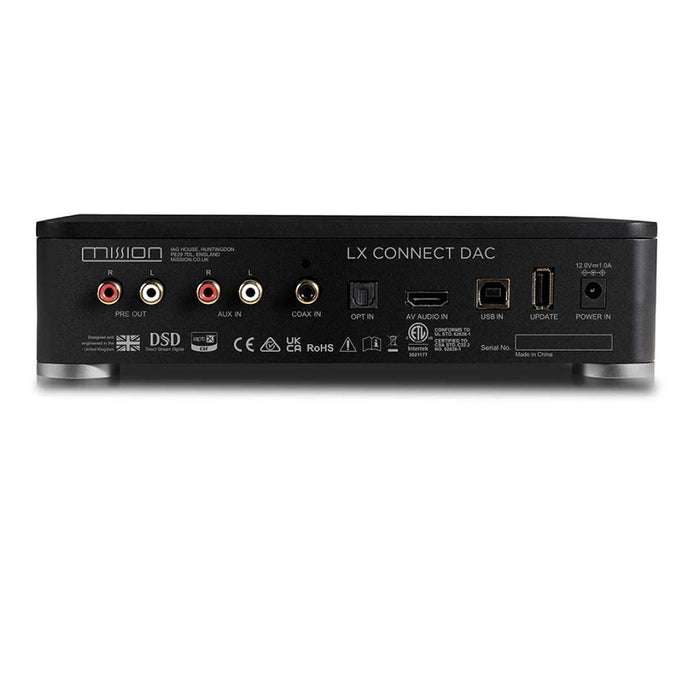

  • General Description: Digital-to-Analogue Convertor, Headphone Amplifier and Pre-amp
  • Analogue Input: RCA (AUX)
  • Digital Input: OPT, COAX, PC USB, Bluetooth, AV Audio
  • Analogue Output: RCA Pre Out

Pre-amplifier:

  • Input Sensitivity: 300mV (AUX IN, volume = MAX)
  • Input Impedance: 13K (AUX IN)
  • Variable Output Voltage: 0 – 3.2V
  • Output Impedance: 100 ohm
  • Frequency Response: 20Hz-20kHz (+/-0.3dB)
  • Signal-to-noise Ratio (S/N): >100dB (AUX IN, A-weighted), >110dB (digital Inputs, A-weighted)
  • Total Harmonic Distortion: < 0.001% (digital sources), < 0.005% (analogue sources)
  • Sampling Rate: 24bit - 192kHz (OPT, COAX), 32bit - 384kHz (USB, PCM), 2.8M for DSD64, 5.6M for DSD128, 11.2M for DSD256 (USB, DSD)
  • Digital Filters: Fast Roll-off, Slow Roll-off, Minimum Phase

Dimensions

  • Height (on feet): 55mm
  • Width: 225mm
  • Depth (with terminals) 231mm
  • Outer Packaging: 418 x 280 x 85mm
  • Net Weight: 1.75kg
