Lehmann Audio Black Cube SE MM/MC Phono Pre-Amplifier

Original price €877.07 - Original price €877.07
Original price €877.07
€877.07
€877.07 - €877.07
Current price €877.07

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

The Black Cube phono stage is already legendary and world-famous. The SE-version is equipped with the PWX power supply for an even better sound. Hear one now!

Key Features:

  • Amplification and RIAA equalisation for MM and MC cartridges
  • Premium components
  • High end Burr Brown gain stage
  • Small size allows installation close to record player
  • Metal case shields the electronics from vibrational and electromagnetic interference

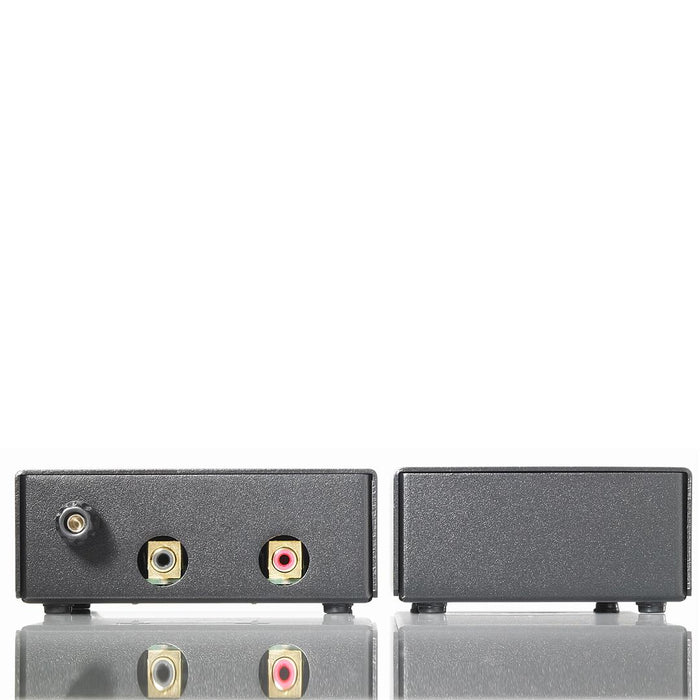

  • 2x RCA input / 2x RCA output
  • Separate dedicated PWX power supply

Since their introduction in 1995, the Black Cube phono stages by Lehmannaudio have become cult objects for analogue-oriented music lovers. Countless positive reviews and awards, and an unrivalled customer satisfaction worldwide document this truly exceptional success.

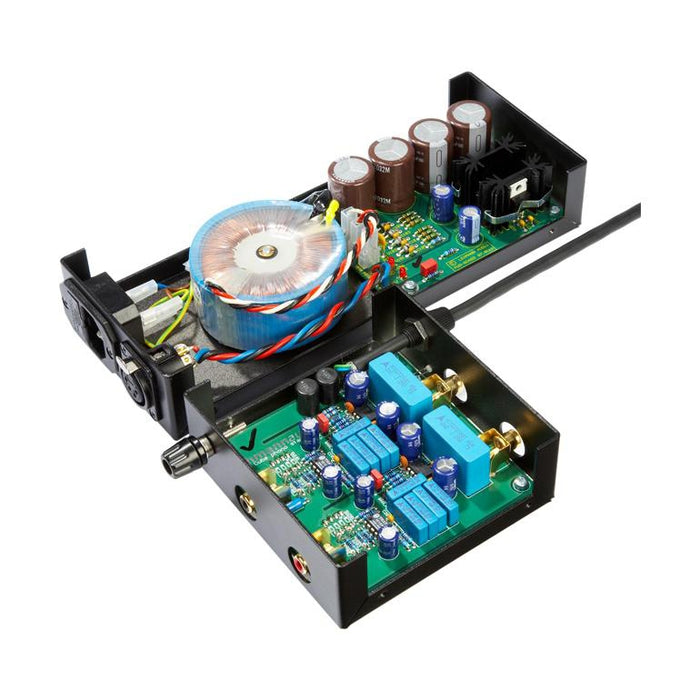

A special 30 VA toroidal transformer of the PWX power supply is the main reason for the sonic performance achieved with the Black Cube SE. This transformer is not only over dimensioned but even sports a grounded isolation coil between the primary and secondary coil. The results: much more bass authority, a more liquid midrange as well as more openness. These sonic benefits are without any doubt the reasons that more and more music lovers choose the Black Cube SE right from the start.

The Lehmannaudio Black Cube SE phono stage is compatible with practically all available cartridges on the market from High Output MM to MC. Apart from the standard switch settings there is one onboard slot that can be fitted with a custom impedance to supply perfect termination even for the most exotic cartridges. No more need for expensive impedance plugs!

The input stages used in the Black Cube SE can also be found in top notch mixing consoles or in well known professional microphone preamps. The entirely passive RIAA equalization network is realized with high precision foil capacitors. All resistors are of the low noise metal film variety. The switches for gain and load settings have gold plated contacts.

Because of the small outer dimensions the Black Cube SE can be placed next to the turntable. This minimizes loss due to cable lengths.

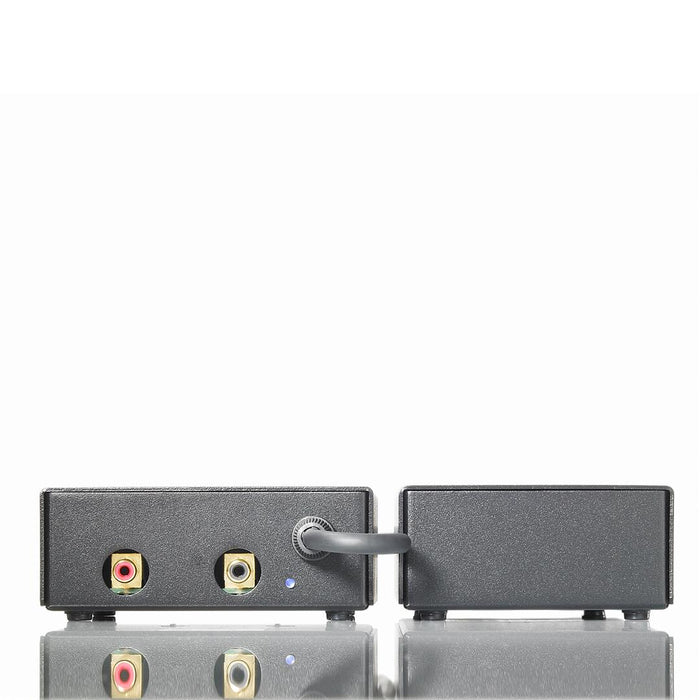

Lehmannaudio always pays special attention to details: the cable between power supply and audio section is shielded and uses a Neutrik connector with gold plated contacts at the power supply side. The cases of both the power supply and the audio section are made of nonmagnetic material (aluminium) and are equipped with a top cover coated with a special anti-resonance treatment.

Specifications:

  • Sensitivity (Output 775 mV/ 0 dB): MM: 3.8 mV/1 kHz, MC: 0.38 mV/1 kHz
  • Gain at 1kHz: MM: 46 dB, MC: 66 dB
  • Signal to Noise Ratio (RMS Unweighted): MM: 71 dB, MC: 63 dB
  • Gain: 36 dB, 46 dB, 56 dB, 66 dB
  • Channel Separation: > 85 dB at 10 kHz
  • Input Capacitance: 100pF
  • Input Impedances: 47 kΩ, 470Ω, 100Ω (Switchable), 1x Custom Load.
  • Output Impedance: 47Ω
  • RIAA Filter: Passive Equalization (Between To Linear Gain Stages)
  • Bass Filter: 50 Hz, 6 dB/oct.
  • Inter-Channel Mismatch: Typ. 0.5dB
  • Power Consumption: < 3W
  • Dimensions: Audio Section: 113 x 108 x 45mm, Power Supply: 93 x 233 x 45mm
  • Weight: Black Cube SE: 400g, PSU: 1000g
