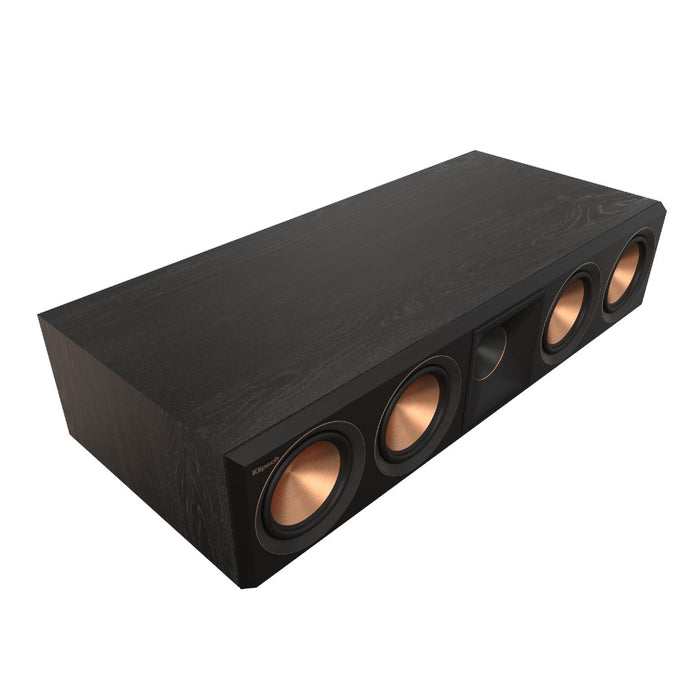

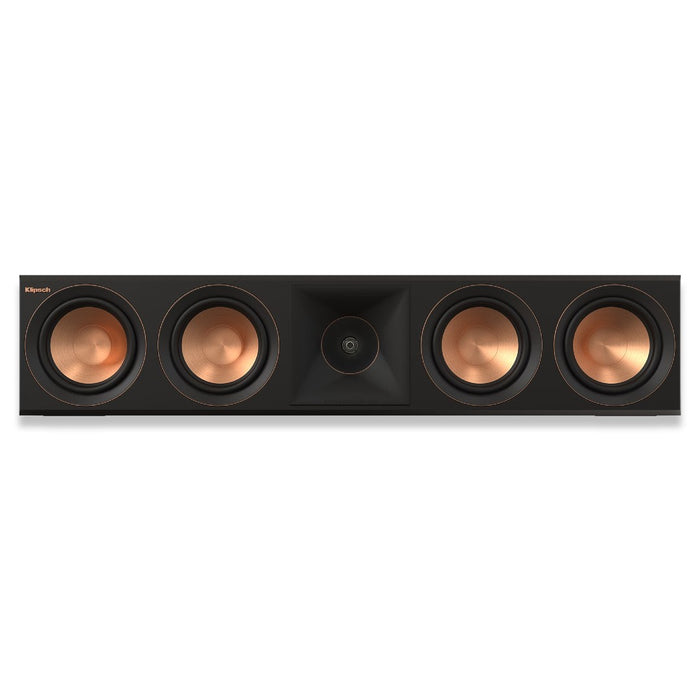

Klipsch RP-504C II Centre Speaker

by Klipsch
Original price €828.29 - Original price €828.29
Original price €828.29
€828.29
€828.29 - €828.29
Current price €828.29

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.
Color: Ebony

Hear every word of the dialogue and lyrics with crystal-clear precision of the Klipsch RP-504C II.

KEY FEATURES:

  • 1" Titanium LTS Vented Tweeter with Hybrid Tractrix Horn
  • Quad 4" Spun Copper Cerametallic Woofers
  • Enclosed cabinet design
  • Premium Scratch Resistant Ebony and Walnut Finishes
  • Strong, Flexible Removable Magnetic Grille

The Next Generation of our iconic Reference Premiere series, the RP-504C II centre speaker utilises new technologies championed by our brand in a new sleek, contemporary design. Maintaining the Silicone Tractrix Horn feature that the range is known for, along with the newly advanced Cerametallic Woofers, this centre channel boasts an impressive frequency response, and level of sensitivity, that will provide the customer with fantastic audio-quality and all-encompassing sound that immerses them into the music.

90° X 90° SILICON COMPOSITE HYBRID TRACTRIX HORN

Horn loading maximises efficiency and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created. The second generation increases horn size for a larger soundstage and enhanced directivity.

LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER

The exclusive Linear Travel Suspension minimises distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.

VENTED TWEETER DESIGN

The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.

CERAMETALLIC WOOFERS – ALL NEW DESIGN

A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New voice coils are 70% larger in diameter resulting in improved power handling and greater cone control for greater linearity and flawless reproduction. New aluminium shorting rings reduce distortion as well as increased power handling and the new motor structure improve transit response with more control with greater speed and accuracy.

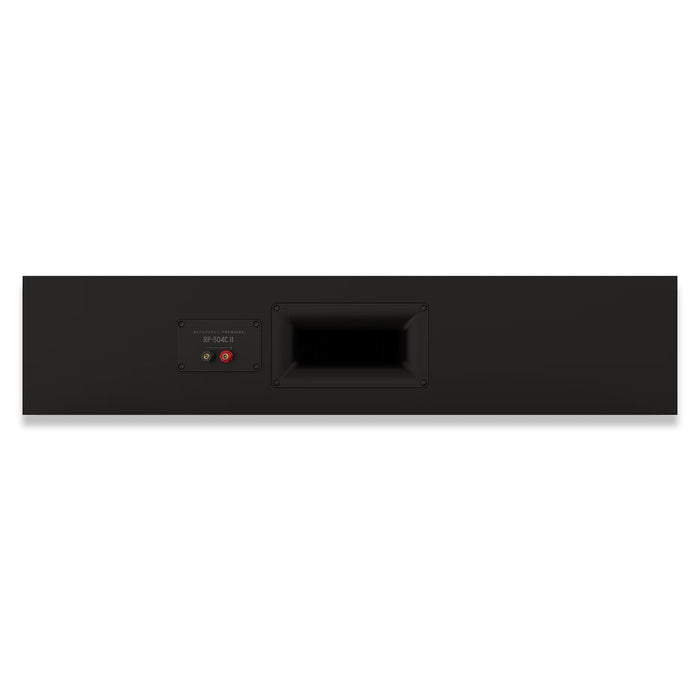

TRACTRIX PORTS

Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

NEW AND IMPROVED INPUT PANEL

Featuring audiophile-grade wire and easily accessible aluminium binding posts for any connection type.

FURNITURE GRADE MATERIALS AND FINISHES

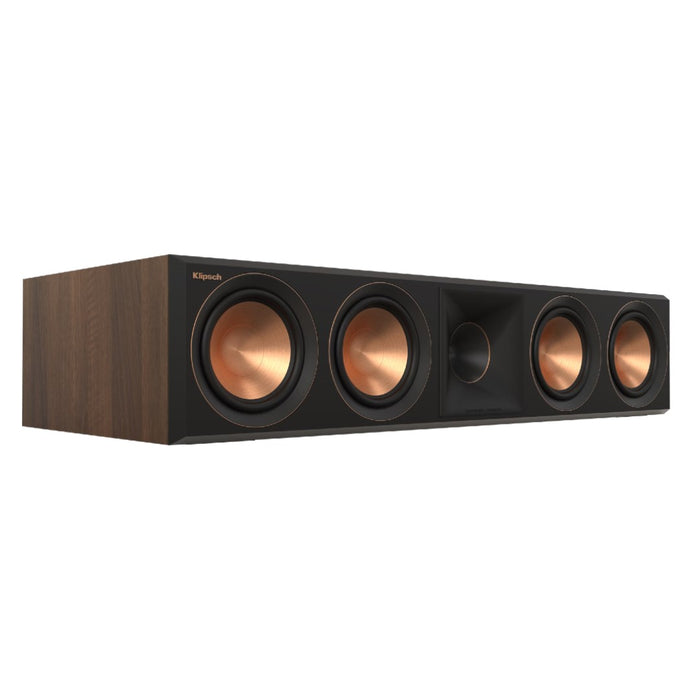

Finishes include ebony vinyl and walnut vinyl that boast satin painted baffles with a scratch resistant finish.

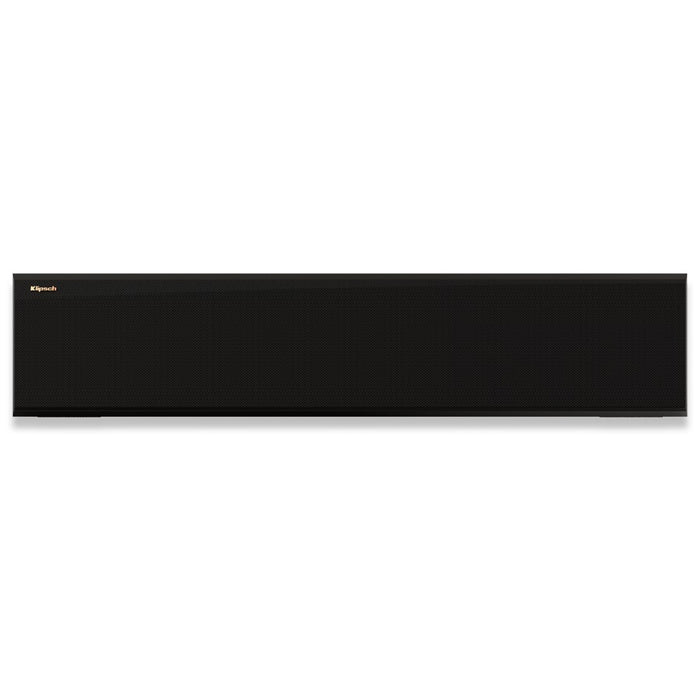

The attractive grille attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece and the runner bumpers of the previous generation have been replaced with Cork pads, for increased security on a stand or table.

SPECIFICATIONS

  • Frequency Response: 50-25kHz +/- 3dB
  • Sensitivity: 96dB @ 2.83V / 1m
  • Power Handling (Cont/Peak): 150W/600W
  • Nominal Impedance: 8Ω Compatible
  • Crossover Frequency: 650Hz/1950Hz
  • High Frequency Driver: 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn
  • Low Frequency Driver: Quad 5.25" Cerametallic Cone Woofers with Faraday rings
  • Enclosure Material: MDF (Internally braced)
  • Enclosure Type: Bass Reflex via rear-firing Tractrix® Port
  • Inputs: Single Binding Posts
  • Dimensions (H x W x D): 17.4 x 81.4 x 38.3cm
  • Weight: 16.45kg
  • Finishes: Ebony, Walnut
  • Included Accessories: Angle Screw
