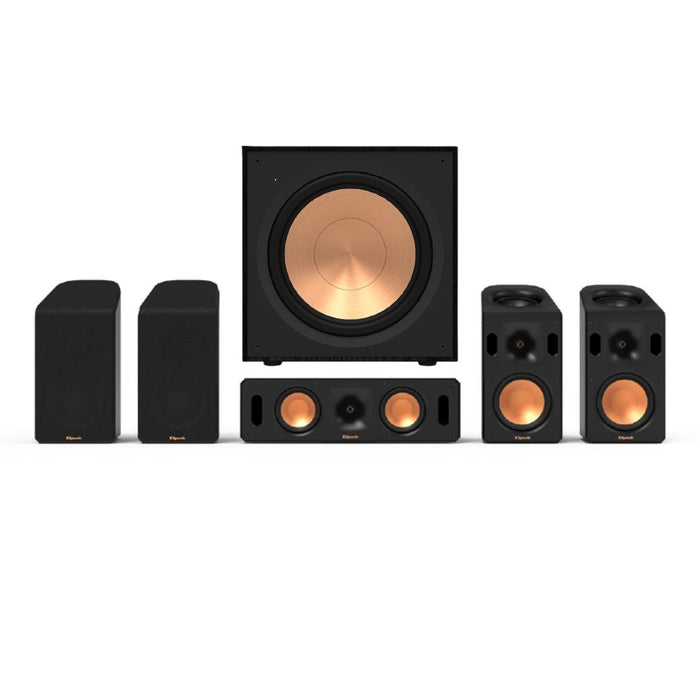

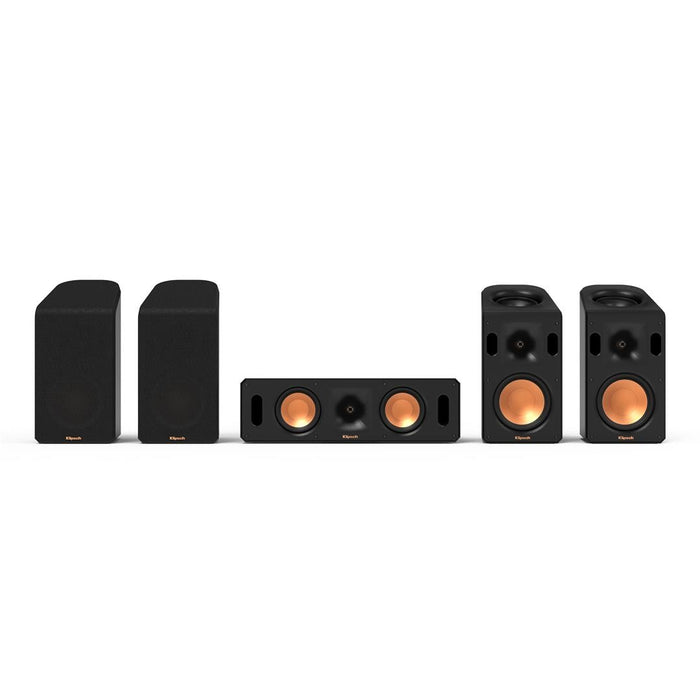

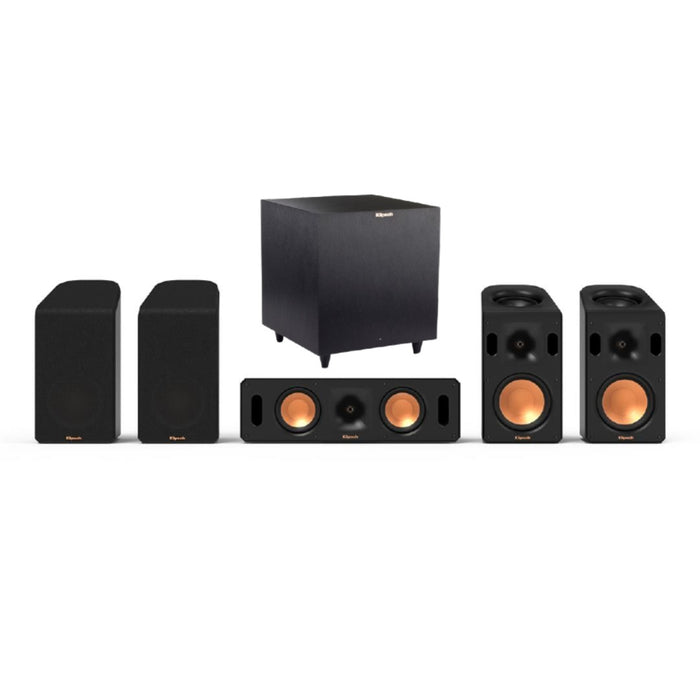

Klipsch RCS 5.0.4 Dolby Atmos Speaker Pack

Klipsch RCS 5.0.4 Dolby Atmos Speaker Pack

by Klipsch
Save up to €97.56 Save €0.00
€1,267.32 - €1,901.46
€1,267.32
€1,267.32
€1,267.32 - €1,803.90
€1,267.32

Subwoofer Option: No Subwoofer
0 in stock
for immediate dispatch or click & collect
Available to order from supplier
For latest lead times or to put down a deposit please contact us
In a rush? See what's available for immediate dispatch

The Klipsch Reference Cinema System with built-in Dolby Atmos is a combination of the coveted Klipsch Reference Series with Dolby Atmos technology, this brings you an immersive and multidimensional home theatre system that you can pair with your chosen A/V receiver.

Key Features:

  • Realistic 360° audio experience
  • High-performance Dolby Atmos elevation channel
  • 90° X 90° Tractrix® Horn
  • Dual Port Design
  • Spun Copper IMG Woofers
  • Linear Travel Suspension Horn-Loaded Tweeters
  • Add a Klipsch Subwoofer

TAKE YOUR MOVIES, MUSIC AND GAMES TO NEW HEIGHTS

Klipsch’s proprietary speaker technologies are perfect for bringing you the most immersive, impactful 360° Dolby Atmos® listening experience. Ideal for movies, TV, music and gaming, this system not only distributes surround sound towards the listener, but the Reference Cinema System also reflects sound off of the ceiling with discrete elevation channels to deliver an immersive, overhead Dolby Atmos® experience.

NEXT-GEN COMPATIBLE

Even if you are thinking of upgrading your TV, gaming console, or streaming account, the Reference Cinema System with Dolby Atmos provides an incredibly immersive realistic 360° audio experience.

BUILT-IN ELEVATION SPEAKERS

Each of the speakers in the Reference Cinema System incorporates a high-performance Dolby Atmos elevation channel into its design, this allows for encompassing soundstage.

90° X 90° TRACTRIX® HORN

Klipsch’s exclusive Tractrix horn technology and aluminium tweeters deliver an imposing high-end response and greater extension, enhanced imaging and powerful dynamics. Because of this, the Klipsch Reference Cinema System creates the cleanest, most natural sound possible.

LINEAR TRAVEL SUSPENSION (LTS) ALUMINUM TWEETER

A Linear Travel Suspension minimizes distortion, this gives an enhanced, detailed performance. LTS tweeters have been a hallmark of the Klipsch Reference series products, making it a core component for some of the best speakers in the world.

SPUN COPPER IMG WOOFER

Injection Moulded Graphite (IMG) woofers are exceptionally light, while also being remarkably rigid – providing remarkably low frequency response, with minimal cone breakup and distortion.

DUAL-PORT DESIGN

The dual port design provides improved cabinet and low frequency response for impactful bass performance from all components in the Klipsch Reference Cinema System.

COMPACT, MODERN APPEARANCE

The compact design of the Reference Cinema System provides real home cinema performance, without having to sacrifice your interior living space. A sleek and stylish aesthetic with complete durability that results in a seamless integration into any interior décor.

ADD A SUBWOOFER

Get the full cinema experience by matching the Reference Cinema System with a Klipsch R-8SW subwoofer and the Klipsch R-121SW.

Specifications

Frequency Response:  90Hz-20kHz (+/- 3dB)
Height Channel: Conforms to Dolby Atmos Specifications
Nominal Impedance: 8 Ω compatible
Sensitivity: Satellite: 92dB @ 2.83v/1M
Centre: 91dB @ 2.83v/1M
Height Channel: Conforms to Dolby Atmos Specifications
Power Handling: Satellite: 75W/300W
Centre: 75W/300W
Height Channel: 40w/160w
High Frequency Driver: 1” Aluminium LTS Tweeter Mated to a 90x90 Tractix® Horn
Low Frequency Driver: Satellite: 2.25” Spun-Copper IMG Woofer

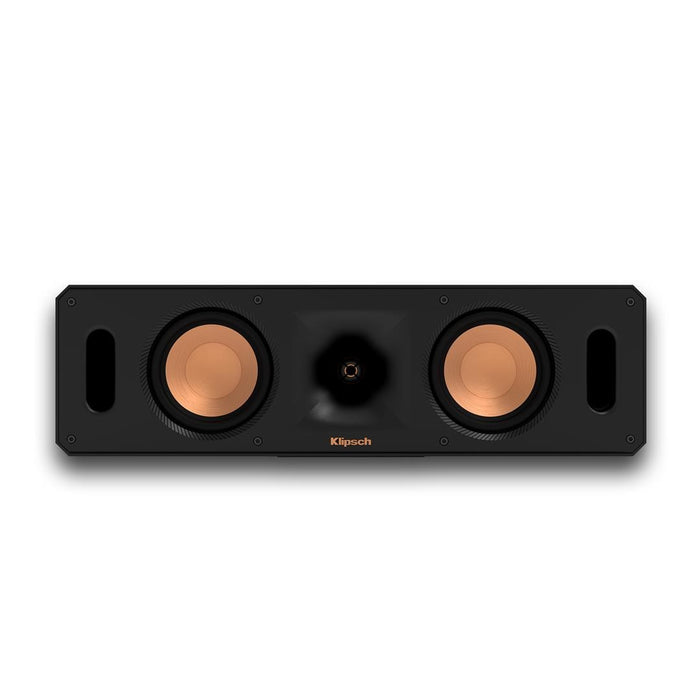

Centre: Dual 4” Spun-Copper IMG Woofers
Height Channel Driver: 4” Polyfiber Woofer
Dimensions (HxWxD): Satellite: 342.1 x 164.3 x 189.2mm
Centre: 131.1 x 442.0 x 154.2mm
Weight: Satellite: 3.72kg
Centre:3.36kg
Mounting: Satellite: Keyhole and 1 /4” x 20 threaded insert
Centre: Dual Keyhole with dual 1 /4” x 20 threaded insert
