DALI Phantom H120 In-Wall Centre Speaker

by DALI
Original price €1,179.52 - Original price €1,179.52
Original price €1,179.52
€1,179.52
€1,179.52 - €1,179.52
Current price €1,179.52

Availability: With lead time Lead times are estimates and will be confirmed with the supplier upon ordering. Our sales team will provide you with the actual lead time as soon as it is received.

The PHANTOM H-120 has an unprecedented 12” woofer to deliver deep and powerful bass. The H-120 is perfect for installations where normal floor-standing speakers or an external subwoofer cannot be used, or when deep, room filling bass is essential.

TRADITIONAL SPEAKER TECHNOLOGIES

The PHANTOM High-end speakers are in-stall speakers packed with traditional speaker virtues. Not only do the PHANTOM High-end speakers consist of wood fiber cones and drivers mounted in a classic MDF baffle, the placement of the woofer and tweeter is just similar to our traditional speakers.

WIDE DISPERSION

All DALI speakers are designed around the principle of wide dispersion. This entails an off-axis optimisation of the audio reproduction, and this technology is perfect for use with install speakers, since they are always mounted flush against wither a wall or a ceiling.

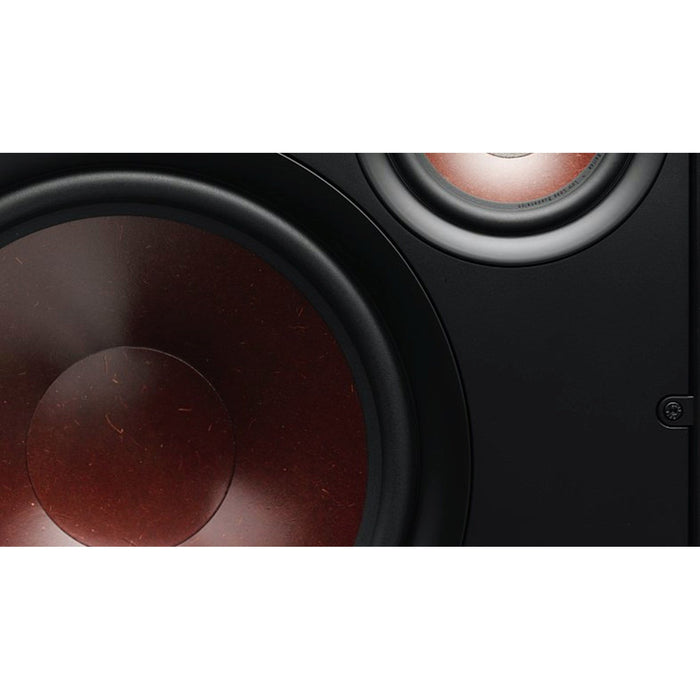

WOOD FIBRE CONES

This mix paper pulp and wood fibre makes the cones stiff and light which ensures that every micro detail in the signal is reproduced unfiltered.

EASY INSTALLATION

The dogleg mounting system makes the install process an easy one-step action simply by tightning the dedicated screws to swing out the dogleg brackets.

PRODUCT DETAILS

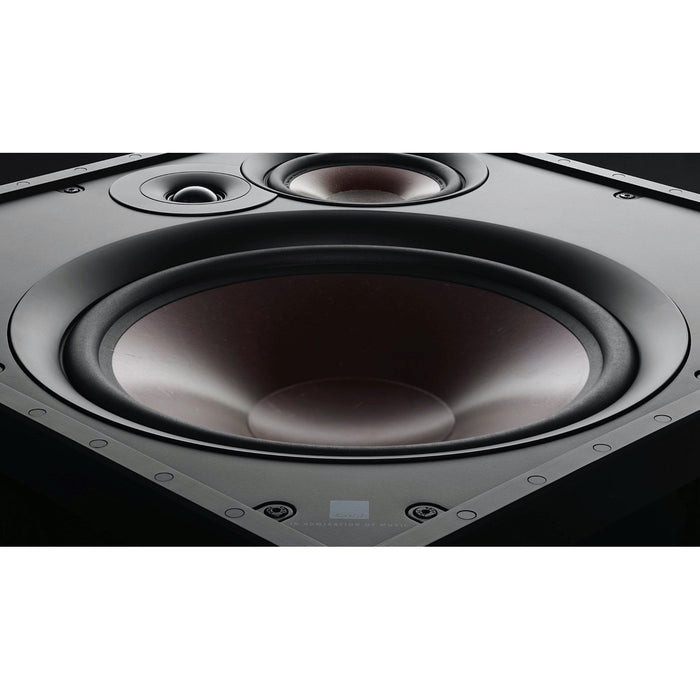

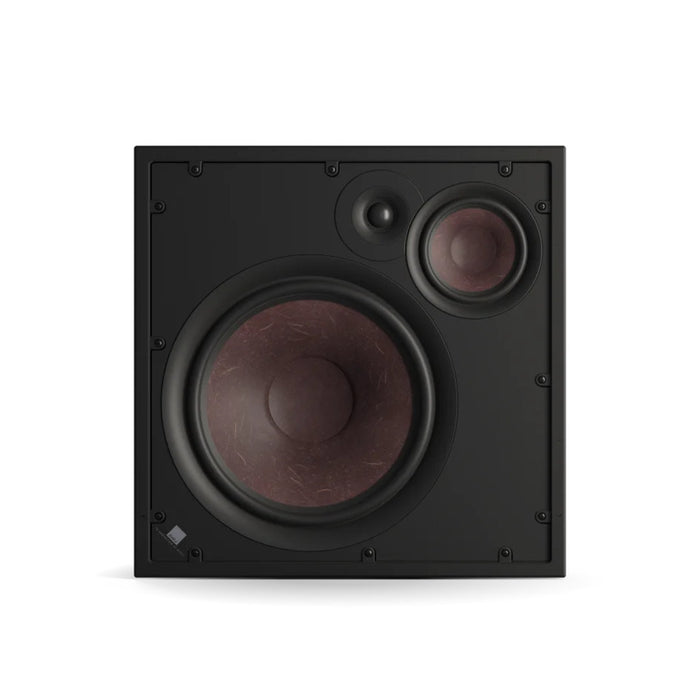

The totally unique PHANTOM H-120 in-wall speaker brings the best, and then some, from a traditional big floor standing speaker, but is mounted in your wall. With an unprecedented 12” woofer to deliver deep and powerful bass, and a separate 5” woofer to handle the important mid-range area, this 3-way speaker delivers like no other in-wall speaker in the world. Perfect for installations where normal floor-standing speakers or an external subwoofer cannot be used, or when deep, room filling bass is essential.

The PHANTOM H series

The DALI PHANTOM H-120 is an in-wall speaker build around traditional speaker technologies. At its centre is the easy to recognize the DALI woofer cone made from a mix of paper pulp and wood fibre. This gives the cone a light, well behaved, but random structure that helps reproduce even the smallest details in the music.

The powerful low-loss magnet system deliver precision and timing to the low frequencies and the ultra lightweight soft dome tweeter adds great resolution to the high frequencies. Together they blend into a very coherent, highly detailed, clear and natural soundstage. The PHANTOM H-120 is a true full range speaker and needs no supplement subwoofer - it is all about true hi-fi sound, versatility, and flexibility.

Specifications

  • Frequency Range (+/-3 dB) [Hz] 32 - 25,000
  • Sensitivity (2,83 V/1 m) [dB] 90.0
  • Nominal Impedance [ohms] 4
  • Maximum SPL [dB] 112
  • Recommended Amplifier Power [W] 50 - 400
  • Crossover Frequency [Hz] 850 / 4,000
  • High frequency driver, Quantity 1 x 28 mm
  • High frequency driver, Diaphragm type Soft Textile Dome
  • Low frequency driver, Quantity 1 x 5.25" / 1 x 12"
  • Low frequency driver, Diaphragm type Wood Fibre Cone
  • Enclosure type Open back
  • Connection Input Single Wire
  • Recommended Placement In-Wall In-Ceiling
  • Dimensions (HxWxD) [mm] 471 x 471 x 170
  • Cut-Out Dimensions (HxWxD) [mm] 445 x 445
  • Weight [kg] 9.00

Accessories Included

  • 3mm Allen Key
  • Cut-Out Template
  • Logo Badge
  • Manual
