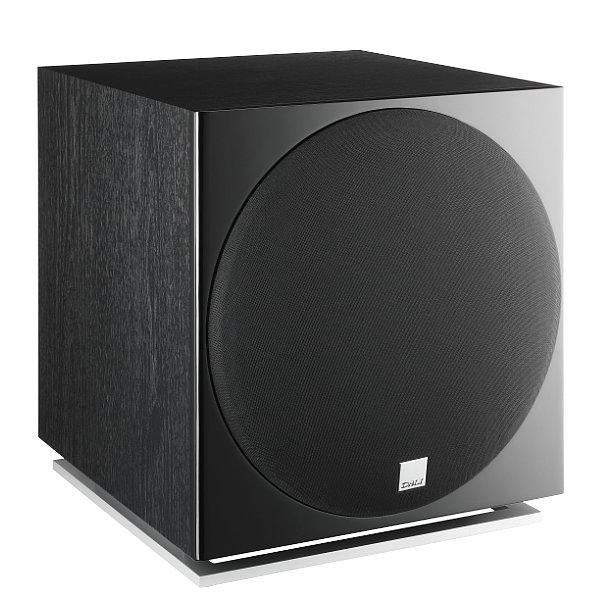

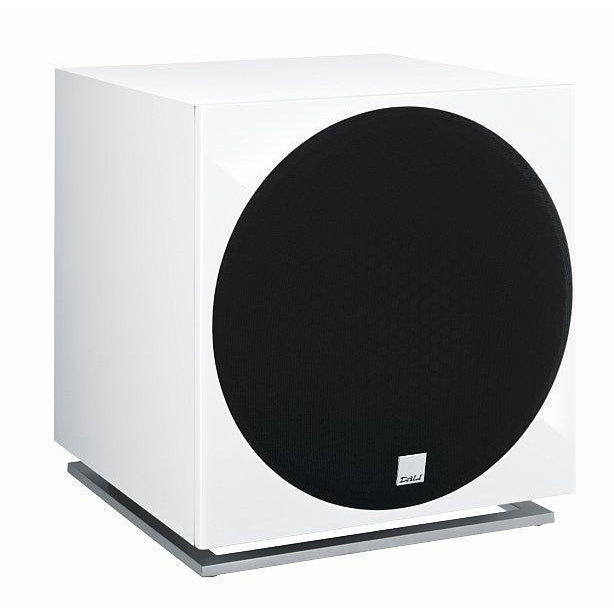

DALI E-12 F Subwoofer
The new subwoofer from DALI features a 12” woofer, capable of moving plenty of air with power and precision. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers.
The new subwoofer from DALI features a 12” woofer, capable of moving plenty of air with power and precision. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers.
The launch of the DALI SUB E-12 F marks a new stage of what is possible at this level of subwoofers.
The new subwoofer from DALI features a 12” woofer, capable of moving plenty of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil. All in all, the heavy-duty abilities of this “motor system” ensure that the woofer always follows the signal from the amplifier!
The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, well-balanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.

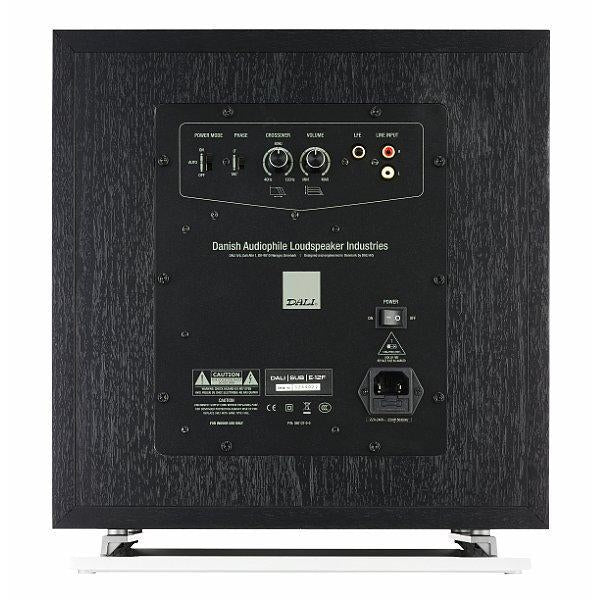

The back plate of SUB E-12 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.

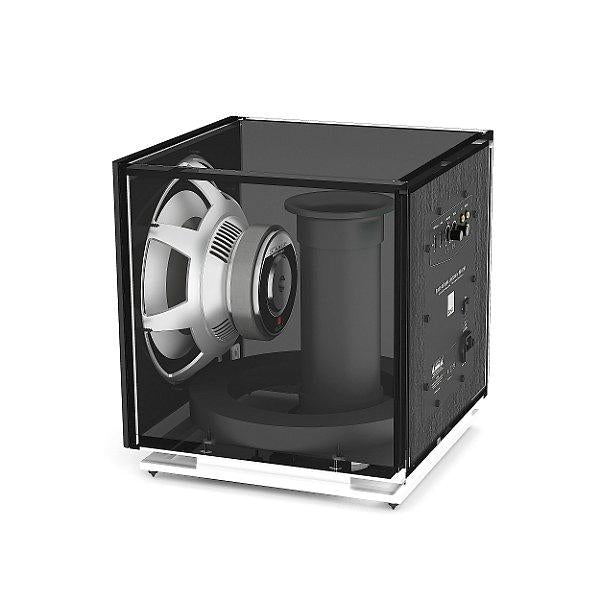

SUB E-12 F is elevated from the floor by an aluminium base, while a down-firing bass port allows positioning directly against the wall. The front grille is mounted by magnets only – and when removed, the visual appearance changes from discreet to extravagant as the pure aluminium cone is revealed.
The DALI SUB-12 F is recommended as compliment to the new ZENSOR series and is compatible with all DALI loudspeakers as the perfect completion of a DALI surround set up.
Frequency Range (+/-3 dB) [Hz] | 28 - 190 |
Maximum SPL [dB] | 112 |
Crossover Frequency [Hz] | 40 - 120 |
Low frequency driver, Quantity | 1 x 12" long stroke |
Low frequency driver, Diaphragm type | Polymere Aluminimum |
Enclosure type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 36.0 |
Max. Amplifier Power Output [RMS watt] | 220 |
Continous IEC Power Output [RMS watt] | 170 |
Input Impedance [ohms] | 25k |
Connection Input | Mono Line Level (LFE) RCA Stereo Line Level (low pass filtered) |
Magnetic Shielding | No |
Recommended Placement | Floor |
Recommended Distance From Wall [cm] | > 5 |
Functions | Crossover Frequency Phase Switch Standby (Auto Power) On/Off Switch Volume (Gain) |
Max. Power Consumption [W] | 250 |
Dimensions With Base (HxWxD) [mm] | 370 x 340 x 380 |
Weight [kg] | 14.7 |
Accessories Included | Manual Rubber Bumpers Spikes M6 |
