Pure Processing — No Compromises
Unlike an integrated AV amplifier, the AVP45 dedicates every circuit to signal processing and conversion — with no amplifier stage to introduce noise or compromise. All 16 channels feature both balanced XLR (5V RMS) and single-ended RCA outputs, ensuring pristine signal integrity when connected to external power amplification. Pair with the Arcam PA9 Class G power amplifier for the ultimate Radia system.
Full Matrix Channel Assignment — 16 Channels, Total Flexibility
The AVP45 offers complete matrix channel assignment across all 16 channels, giving you total freedom to configure the most ambitious speaker layouts imaginable — from conventional 7.1.4 to exotic 9.1.6 and beyond. Subwoofer assignment to channels 4 and 11–16 gives full flexibility for multi-sub configurations.
Every Immersive Format
Full decoding of Dolby Atmos, Dolby TrueHD, DTS:X, DTS HD Master, MPEG-H, IMAX Enhanced, AURO-3D and AURO-2D, with height virtualisation via Dolby Atmos Height Virtualisation and DTS Virtual:X.
Dirac Live Room Correction
Included Dirac Live with measurement microphone — upgrade with optional Dirac Live Bass Control and Dirac Live Active Room Treatment for reference-level acoustic precision across all channels.
HDMI 2.1a — 8K, 4K/120Hz & Multi-Zone
Seven HDMI 2.1a inputs and three outputs (HDCP 2.3) — two Zone 1, one Zone 2 — with VRR, ALLM, eARC, Dolby Vision, HDR10+ and HLG. Resolutions up to 8K/60Hz or 4K/120Hz.
Streaming & Wireless
Roon Ready, Apple AirPlay, Google Cast, Spotify Connect, TIDAL Connect, Qobuz Connect, Internet Radio, Podcasts and UPnP. Dual-band Wi-Fi and Bluetooth 5.4 with Snapdragon Sound and Auracast. Controlled via the ARCAM Radia App for iOS, Android and Windows.
Key Specifications
- Type: Pure AV Processor (no built-in amplification)
- Processing Channels: 16

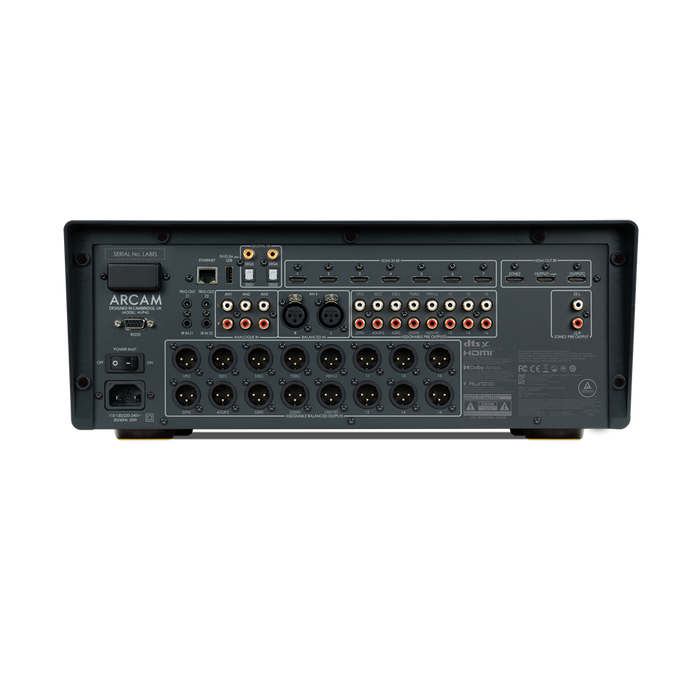

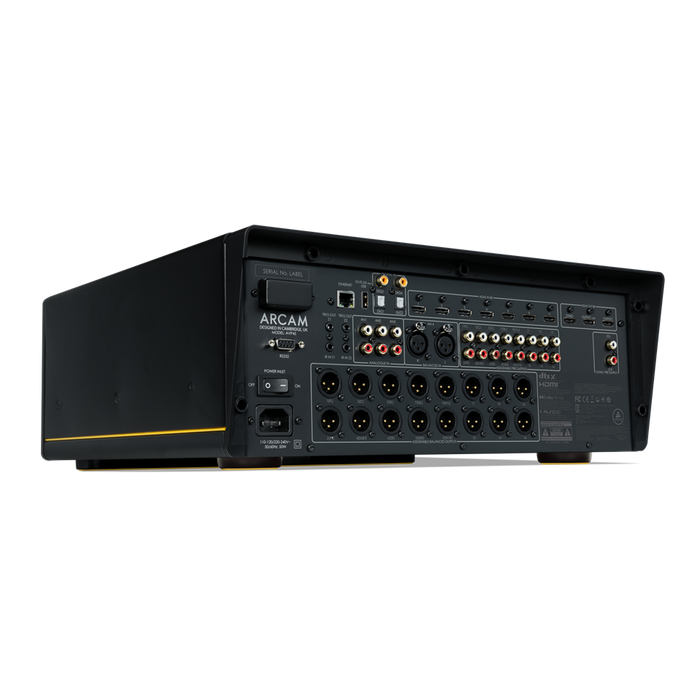

- Preamp Outputs: 16× XLR (balanced, 5V RMS) + 16× RCA (2V RMS)
- HDMI: 7 inputs / 3 outputs (2.1a / HDCP 2.3), eARC on Zone 1 Output 1
- Video: Up to 8K/60Hz or 4K/120Hz; VRR, ALLM, Dolby Vision, HDR10+
- Decoding: Dolby Atmos, DTS:X, IMAX Enhanced, AURO-3D, MPEG-H
- Channel Assignment: Full matrix (all 16 channels freely reassignable)
- Room Correction: Dirac Live (Bass Control & ART upgrades available)
- Analogue Inputs: 3× RCA pairs
- Digital Inputs: 2× Coaxial, 2× Optical
- Streaming: Roon Ready, AirPlay, Google Cast, Spotify/TIDAL/Qobuz Connect
- Wireless: Bluetooth 5.4 (Snapdragon Sound, Auracast), Dual-band Wi-Fi

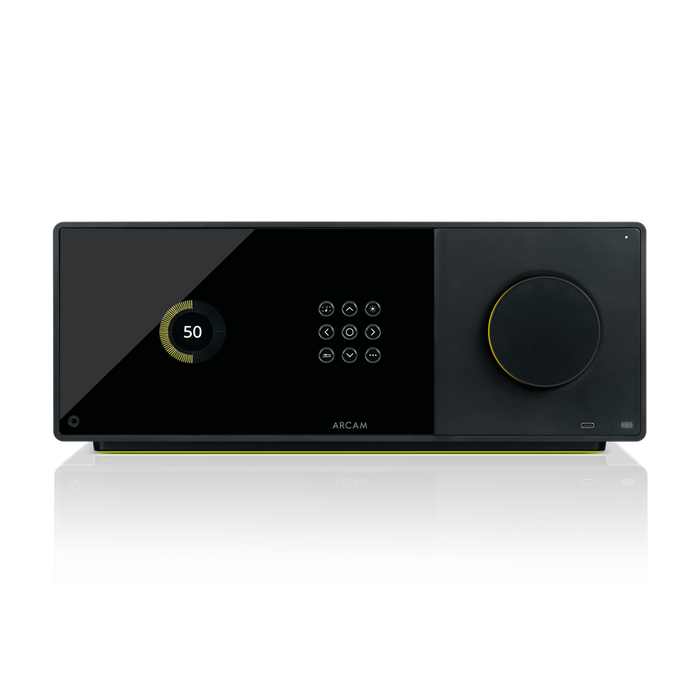

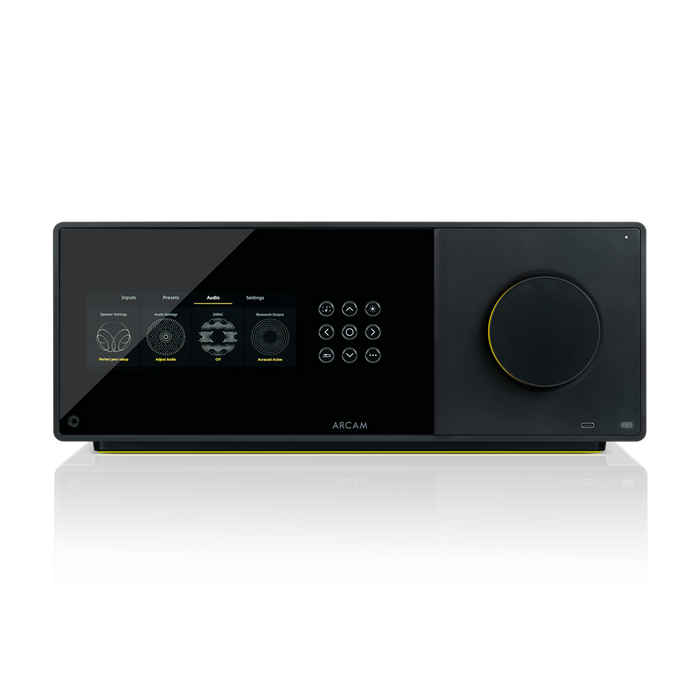

- Display: 6.5-inch colour display
- Dimensions: 432 × 399 × 170mm (W × D × H)
- Weight: 9.4kg
Available Q3 2026. Part of the Arcam Radia Series. Includes Dirac Live measurement microphone. Requires external power amplification.
