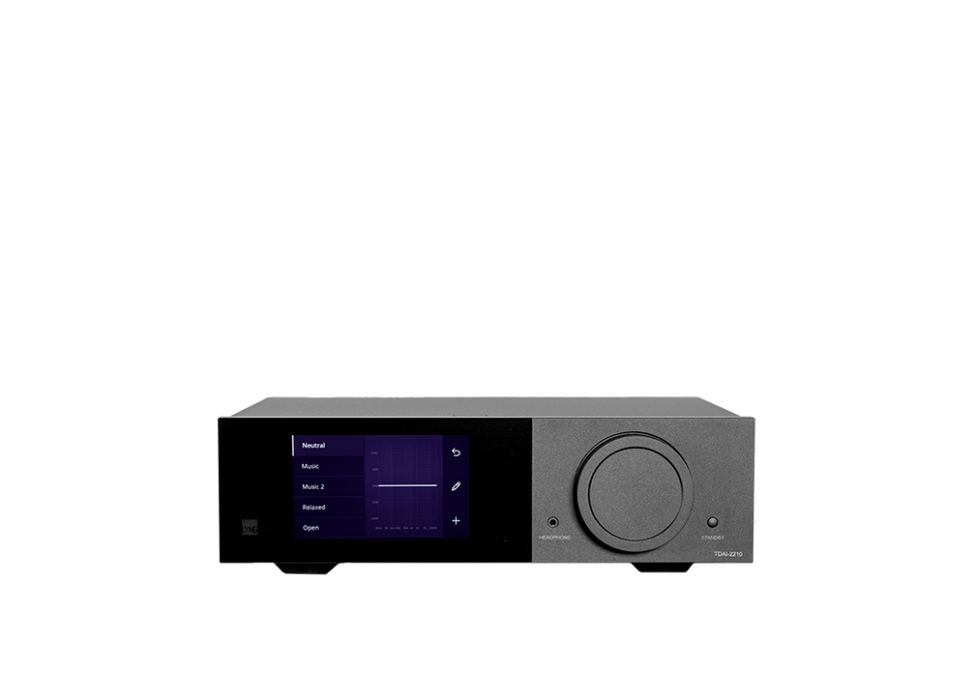

Color Touchscreen with Smooth Glass Surface

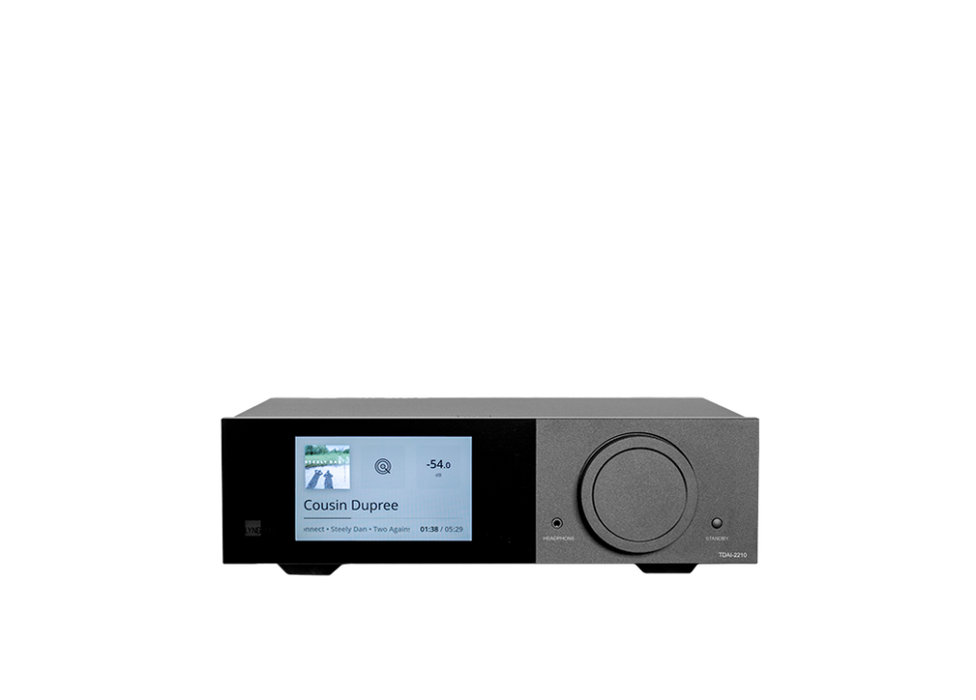

The TDAI-2210 features a vivid color touchscreen with a silky-smooth real glass surface for intuitive operation and a premium tactile feel. The icon-based interface allows easy setup, exploration of features, customization, and convenient access to streaming and playback controls. Even when idle, the display shows system status, artwork, and volume level in striking detail.

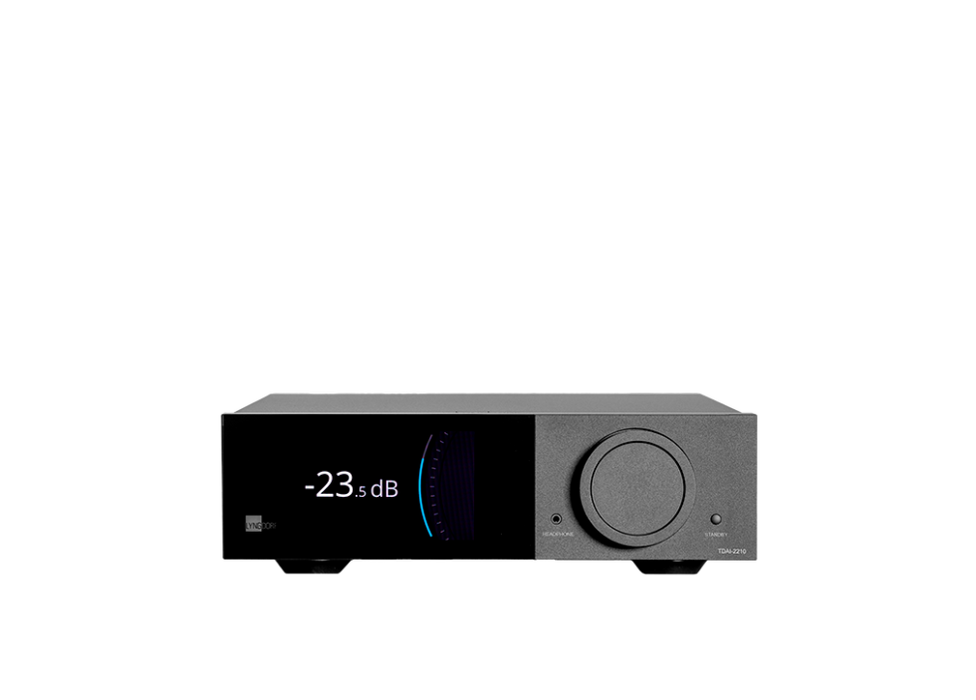

True Digital Amplification and Precision Volume Control
TDAI stands for True Digital Amplifier Integrated. The amplifier operates fully in the digital domain from input to speaker output, eliminating analog conversions that degrade sound quality. The volume wheel adjusts gain in the output stage — not the input — ensuring the cleanest signal path, lowest distortion, and perfectly linear sound at any listening level.
RoomPerfect™ Acoustic Calibration
RoomPerfect™ is Lyngdorf’s world-leading room correction system, optimizing sound based on your room’s acoustics and speaker placement. It corrects common issues like boomy or uneven bass, maintaining tonal balance and spatial accuracy without altering the loudspeaker’s character. Calibration is simple and fully integrated into the TDAI-2210 via touchscreen or the Lyngdorf app.
Ready for Everything: Flexible Connectivity and Upgrades

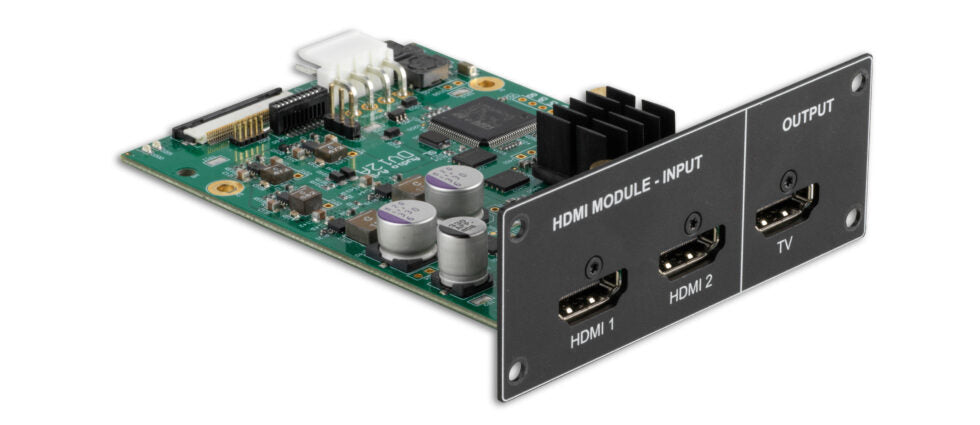

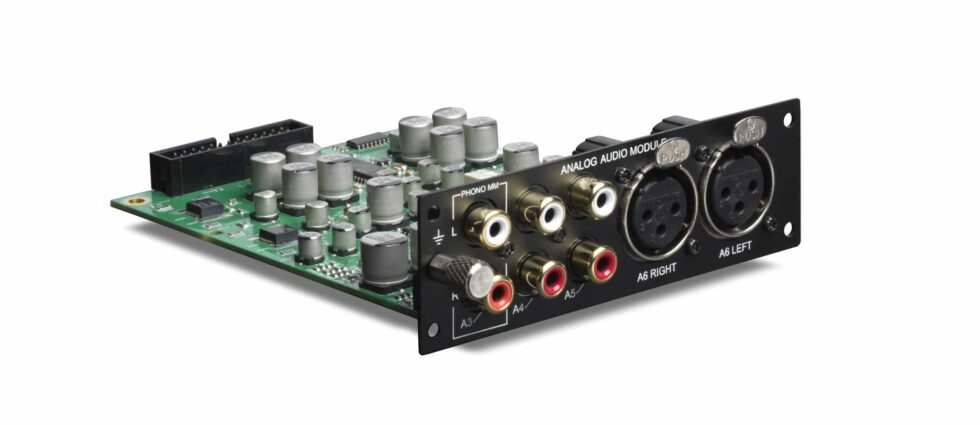

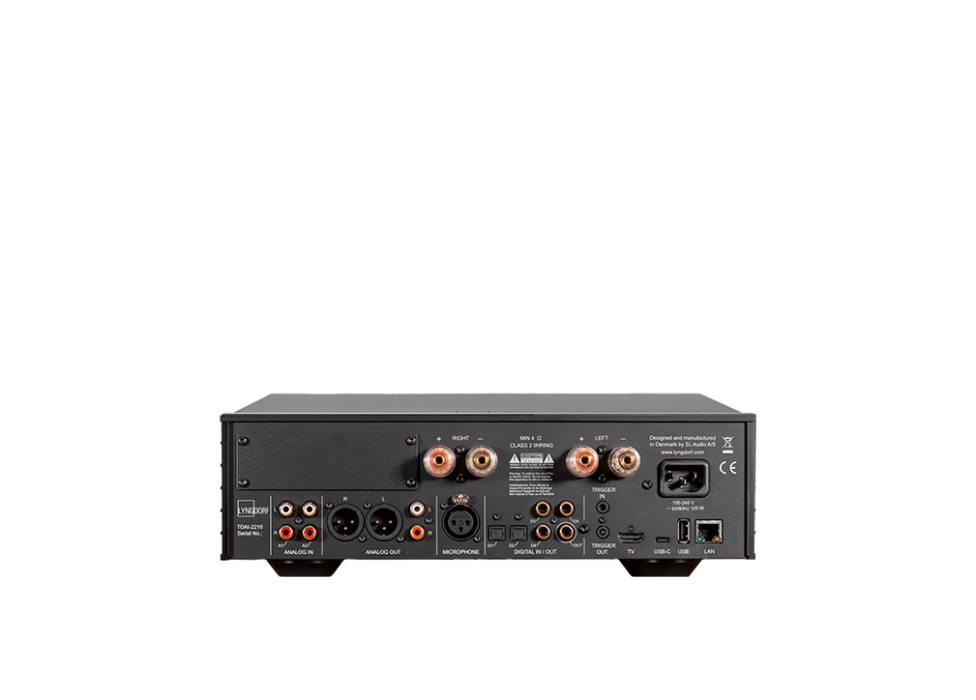

With multiple digital and analog inputs, including HDMI 2.1 and USB-C, the TDAI-2210 connects effortlessly to any audio system. A modular slot allows upgrading with a high-end analog input board or HDMI 2.1 expansion module for enhanced connectivity and customization.
Designed and Assembled in Denmark
Each TDAI-2210 is hand-assembled and 24-hour tested at Lyngdorf Audio’s factory in Denmark, ensuring world-class quality, precision, and reliability. Every amplifier is measured under load to meet strict performance specifications before leaving the facility.
Technical Specifications
| Specification |
Details |
| Description |
2-channel integrated streaming amplifier |
| Power Rating |
2 × 210 W @ 4Ω / 2 × 105 W @ 8Ω |
| Idle Power Consumption |
18–26 W |
| Standby Power Consumption |
< 0.5 W |
| Max Output Current |
35 A per channel |
| Frequency Response |
±0.5 dB, 20 – 20,000 Hz |
| Total Harmonic Distortion |
0.05% max (20 – 20,000 Hz)
THD-N 1W/8Ω: 0.04%
THD-N 1W/4Ω: 0.04% |
| Digital Inputs |
3 × Coaxial (≤192kHz / 24-bit)
2 × Optical (≤96kHz / 24-bit)
1 × USB-C (≤192kHz / 24-bit)
1 × HDMI 2.1 eARC (≤192kHz / 24-bit) |
| Digital Output |
1 × Coaxial (96kHz / 24-bit) |
| Analog Inputs |
2 × RCA single-ended
1 × Mic input (XLR) for RoomPerfect™ |
| Analog Outputs |
1 × RCA single-ended
1 × XLR balanced
1 × 3.5 mm headphone output |
| Optional Modules |
High-End Analog Module: 1 × RIAA Phono MM, 2 × RCA, 1 × XLR
HDMI 2.1 Module: 1 × HDMI Output, 2 × HDMI Inputs (PCM ≤192kHz/24-bit), eARC/ARC, CEC |
| EQ & Room Correction |
RoomPerfect™, Voicings, Bass/Treble tone controls |
| Media Player Functions |
Internet Radio (airable), Spotify Connect, TIDAL Connect, Roon Ready, Google Cast, Apple AirPlay 2, DLNA (UPnP), Local playback via USB, Bluetooth (BLE), Audirvana compatible |
| Interfaces |
Touchscreen, Web interface, iOS/Android remote app, IP control, CEC (HDMI), Trigger in/out, RJ45 Ethernet LAN |
| Remote Control |
Infrared or Bluetooth |
| Accessories Included |
RoomPerfect™ microphone with stand and cable, Remote control |
| Dimensions (W × H × D) |
325 × 102 × 300 mm (incl. connections)
12.8 × 4 × 11.8 in |
| Weight |
4.8 kg / 10.6 lb |
| Finish |
Matte Black |
| Available Versions |
TDAI-2210
TDAI-2210 + High-End Analog Module
TDAI-2210 + HDMI 2.1 Module |

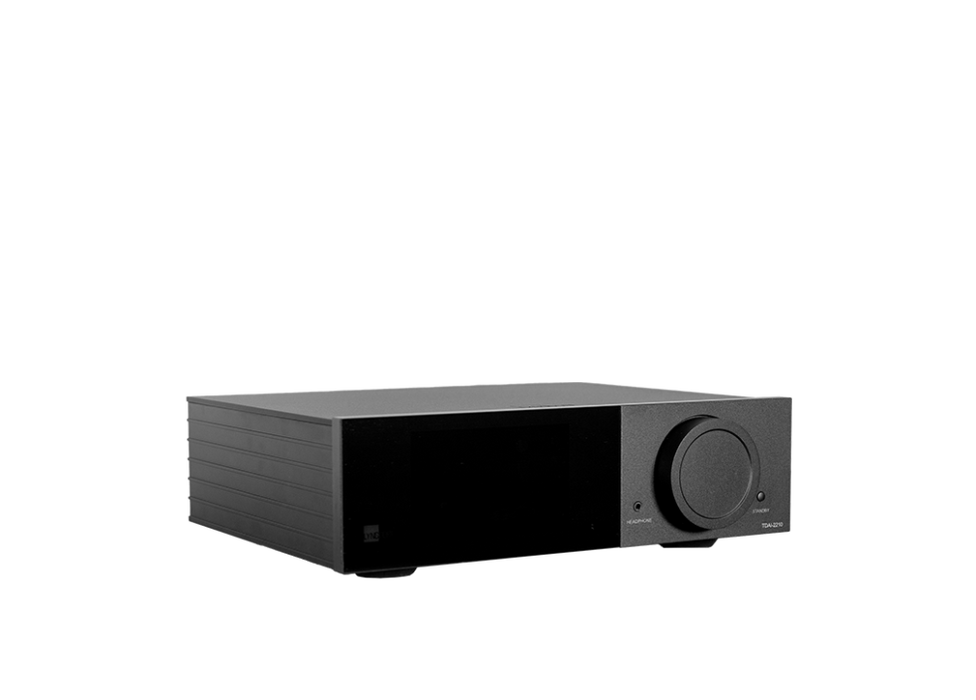

The Lyngdorf TDAI-2210 combines cutting-edge digital amplification, RoomPerfect™ calibration, and flexible streaming connectivity in a beautifully minimalist chassis — redefining what a modern integrated amplifier can deliver.
